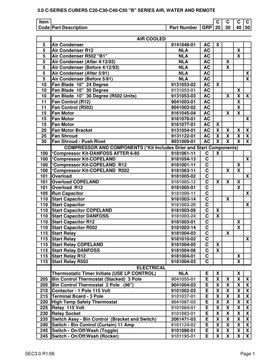

Ice-O-Matic C35 Parts Breakdown | Genuine OEM Parts

9091080-01 FITTING BARREL, ICEOMATIC

9041087-03 THERMOSTAT HI TEMP 3/8, ICEOMATIC

2041338-01 TUBE WATER DIST LH ASSY, ICEOMATIC

9181009-11 CAPACITOR RUN 25MFD 370V, ICEOMATIC

9181009-09 CAPACITOR RUN 15MFD 440, ICEOMATIC

9181005-12 OVERLOAD COMPRESSOR, ICEOMATIC

9181003-20 CAPACITOR ST 108-130@22, ICEOMATIC

9181003-08 CAPACITOR ST 88-106@220, ICEOMATIC

9161076-02 PUMP WATER 1550 RPM 220V, ICEOMATIC

9161076-01 PUMP WATER, ICEOMATIC

9151123-04 COIL SOL VALVE 230V, ICEOMATIC

9151123-03 COIL SOL VALVE 115V, ICEOMATIC

9151123-01 BODY SOL VALVE 200RB 3T3, ICEOMATIC

9151123-02 BODY SOL VALVE 200RB 4T3, ICEOMATIC

9151074-01 RECEIVER, ICEOMATIC

9151027-06 VALVE HEAD PRESS 240LB, ICEOMATIC

9141023-01 CONDENSER-WATER, ICEOMATIC

9141024-01 CONDENSER WATER, ICEOMATIC

9141061-01 CONDENSER WATER, ICEOMATIC

9141022-01 CONDENSER WATER, ICEOMATIC

9101084-02 RELAY 2 POLE 240 V, ICEOMATIC

9101195-01 SWITCH ROCKER DPDT, ICEOMATIC

9101148-01 TIMER MODULE, ICEOMATIC

9101139-03 SWITCH ROCKER SPDT, ICEOMATIC

9101124-02 SWITCH LIMIT SPDT, ICEOMATIC

9101160-01 SWITCH LIMIT SPDT, ICEOMATIC

9101083-01 SOCKET RELAY 2 POLE, ICEOMATIC

9101084-01 RELAY 2 POLE 120 V, ICEOMATIC

9101037-01 BOARD TERMINAL 3 POS, ICEOMATIC

9101002-04 YCONTACTOR 230 V 30 AMP, ICEOMATIC

9091083-01 FITTING WATER INLET, ICEOMATIC

9091001-12 COUPLING HALF 1/2 W/ STU, ICEOMATIC

9091081-01 FERRULE, ICEOMATIC

9091074-01 FITTING DROP ADAPT 3/8FP, ICEOMATIC

9091001-11 COUPLING HALF 3/8 W/ STU, ICEOMATIC

9091001-08 COUPLING HALF TUBING 1/2, ICEOMATIC

9091001-10 COUPLING HALF W/VLV 1/2, ICEOMATIC

9091001-04 COUPLING HALF W/ VLV 3/8, ICEOMATIC

9091001-02 COUPLING HALF TUBING 3/8, ICEOMATIC

9091001-09 FLANGE MOUNTING, ICEOMATIC
