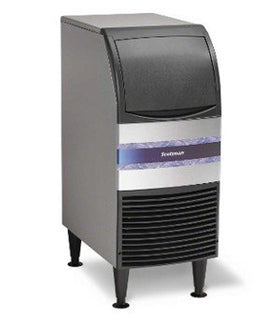

CU0415
Find Parts for CU0415
Browse OEM replacement parts for the CU0415 ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
CU0415
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with CU0415
- 02-3692-23 — Drain fitting kit
- 02-4197-01 — Fan blade
- 02-4391-03 — Scoop
- 02-4416-01 — Dryer
- 02-4677-01 — Insulation
- 02-4677-02 — Insulation
- 02-4678-01 — Pump hose
- 02-4679-01 — Evap frame
- 02-4680-01 — Water header top
- 02-4681-01 — Water header pan
- 02-4683-01 — Front panel
- 02-4684-01 — Front panel
- 02-4685-01 — Door, outer
- 02-4685-04 — Door liner
- 02-4686-01 — Door, outer
- 02-4686-04 — Door liner
- 02-4687-01 — Insulation
- 02-4688-01 — Evaporator cover
- 02-4689-01 — Cube deflector
- 02-4690-01 — Insulation
- 02-4691-01 — Top frame
- 02-4692-01 — Top frame
- 02-4693-01 — Gasket
- 02-4694-01 — Inner top panel
- 02-4695-01 — Inner top panel
- 02-4696-01 — Insulation
- 02-4697-01 — Insulation
- 02-4699-01 — Support
- 02-4702-01 — Pump cover
- 02-4703-01 — Pump bracket
- 02-4704-01 — Grommet
- 02-4705-01 — Bin liner
- 02-4706-01 — Bin liner
- 02-4707-01 — Curtain
- 02-4717-01 — Right side insulation
- 02-4717-02 — Left side insulation
- 02-4718-01 — Insulation filler
- 02-4739-01 — Pump hose
- 02-4805-01 — Rod, door support
- 02-4904-01 — Clip
- 03-0571-00 — Screw for drain fitting
- 03-1404-12 — Screw
- 03-1407-08 — Washer
- 03-1531-08 — Screw
- 03-1711-01 — Thermistor clip
- 03-3821-01 — Clip
- 03-3836-04 — Screw
- 03-3870-01 — Screw
- 03-3940-01 — Bumper (in door slot & base)
- 03-3941-01 — Bushing
- 03-3943-01 — Screw
- 03-3943-02 — Screw
- 03-3961-01 — Hose Clamp
- 11-0562-01 — Hot gas valve
- 11-0562-02 — Hot gas valve
- 11-0566-03 — Fan motor pressure switch
- 11-0599-21 — Controller
- 11-0606-01 — Thermistor, long/blue wire to
- 11-0617-21 — Bin thermostat
- 12-1638-14 — Power cord
- 12-1638-22 — Power cord
- 12-1638-23 — Power cord
- 12-2686-01 — Fuse
- 12-2687-01 — Fuse block
- 12-2924-01 — Transformer
- 12-2924-03 — Transformer
- 12-2986-21 — Water pump
- 12-2986-22 — Water pump
- 12-3008-01 — Terminal Adaptor
- 12-3055-01 — Inlet water sol valve
- 12-3055-02 — Inlet water sol valve
- 12-3056-01 — Wire harness, fits all
- 12-3062-01 — Master switch
- 13-0674-01 — 1/4 ID Hose, requires < 24”
- 13-0674-07 — Hose, 11.25” req.
- 13-0840-01 — Drain plug
- 13-0895-01 — 1/4 OD Hose, requires < 12”
- 16-0835-01 — Hose fitting
- 16-1081-01 — Elbow
- 16-1150-01 — Adapter for
- 18-8940-01 — Condenser
- 18-8964-01 — Grommet
Shop CU0415 Parts
About CU0415 Ice Machine Parts
We carry OEM parts for the CU0415 ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
