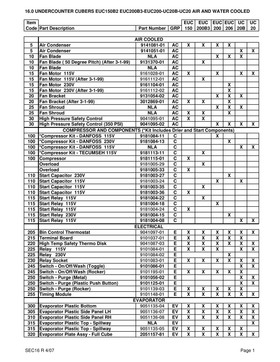

Ice-O-Matic EUC200B3 Parts Breakdown | Genuine OEM Parts

9131026-02 CAPLUG 1-3/8 W/ HOLE, ICEOMATIC

9041097-01 THERMOSTAT BIN CONTROL, ICEOMATIC

9041087-03 THERMOSTAT HI TEMP 3/8, ICEOMATIC

2041338-01 TUBE WATER DIST LH ASSY, ICEOMATIC

9181005-29 OVERLOAD COMPRESSOR, ICEOMATIC

9181004-24 RELAY CURRENT, ICEOMATIC

9161112-01 MOTOR FAN 115V 16 W, ICEOMATIC

9161112-02 MOTOR FAN 230V 16 W, ICEOMATIC

9161076-02 PUMP WATER 1550 RPM 220V, ICEOMATIC

9161076-01 PUMP WATER, ICEOMATIC

9161028-01 Z MOTOR FAN 6 W 115 V, ICEOMATIC

9151123-04 COIL SOL VALVE 230V, ICEOMATIC

9151123-03 COIL SOL VALVE 115V, ICEOMATIC

9151123-01 BODY SOL VALVE 200RB 3T3, ICEOMATIC

9141022-01 CONDENSER WATER, ICEOMATIC

9101084-02 RELAY 2 POLE 240 V, ICEOMATIC

9101195-01 SWITCH ROCKER DPDT, ICEOMATIC

9101139-03 SWITCH ROCKER SPDT, ICEOMATIC

9101148-01 TIMER MODULE, ICEOMATIC

9101083-01 SOCKET RELAY 2 POLE, ICEOMATIC

9101160-01 SWITCH LIMIT SPDT, ICEOMATIC

9101084-01 RELAY 2 POLE 120 V, ICEOMATIC

9101037-01 BOARD TERMINAL 3 POS, ICEOMATIC

9091083-01 FITTING WATER INLET, ICEOMATIC

9091074-01 FITTING DROP ADAPT 3/8FP, ICEOMATIC

9051280-05 TUBE PURGE DRAIN EUC200, ICEOMATIC

9051136-07 PANEL EVAP LH SM W/AG, ICEOMATIC

9051142-02 TUBE WATER PUMP SHORT, ICEOMATIC

9051135-05 SPILLWAY EVAP W/ AGION, ICEOMATIC

9051135-04 WATER-RETURN EVAP W/ AG, ICEOMATIC

9051136-08 PANEL EVAP RH SM W/AG, ICEOMATIC

9051057-01 ROD CONNECTING, ICEOMATIC

9041059-01 REGULATOR WATER PRESS, ICEOMATIC

9041095-01 Z CONTROL PRESSURE HI, ICEOMATIC

9041010-01 YREGULATOR WATER PRESSUR, ICEOMATIC

9051515-01 YGRILLE FRONT ICEU BLACK, ICEOMATIC

9031019-08 SCREW PHP ST 6-32 X 1/2, ICEOMATIC

9021102-01 PROBE SINGLE LENGTH, ICEOMATIC

6021032-01 TUBING CTL PVC 1/4, ICEOMATIC

9131111-01 FLOAT VALVE, ICEOMATIC
