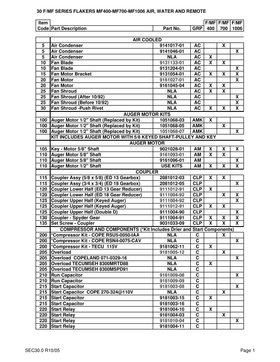

Ice-O-Matic F_MF400 Parts Breakdown | Genuine OEM Parts

9121026-91 SEAL AND FACE ECO-5264**, ICEOMATIC

9051007-01 Z BOOT EVAPORATOR, ICEOMATIC

9121001-06 Y BEARING .75 IDX1.62 OD, ICEOMATIC

9111012-91 Z COUPLING HALF 5/8 DIA, ICEOMATIC

9181062-12 KIT SERVICE COMPR -02, ICEOMATIC

9181010-04 RELAY POTENTIAL, ICEOMATIC

9181009-09 CAPACITOR RUN 15MFD 440, ICEOMATIC

9181009-08 CAPACITOR RUN 15MFD 370V, ICEOMATIC

9181005-12 OVERLOAD COMPRESSOR, ICEOMATIC

9181003-08 CAPACITOR ST 88-106@220, ICEOMATIC

9161093-01 Z MOTOR AUGER 1/4 HP, ICEOMATIC

9151123-04 COIL SOL VALVE 230V, ICEOMATIC

9151123-03 COIL SOL VALVE 115V, ICEOMATIC

9151123-02 BODY SOL VALVE 200RB 4T3, ICEOMATIC

9151074-01 RECEIVER, ICEOMATIC

9141023-01 CONDENSER-WATER, ICEOMATIC

9141024-01 CONDENSER WATER, ICEOMATIC

9141022-01 CONDENSER WATER, ICEOMATIC

9131220-01 Z HOUSING LOWER BEARING, ICEOMATIC

9131219-01 Y HOUSING UPPER BEARING, ICEOMATIC

9131206-01 ZNUT RETAINING F-1000, ICEOMATIC

9131217-01 YHOUSING UPPER BEARING, ICEOMATIC

9131207-01 NUT RETAINING 2-1/4, ICEOMATIC

9131133-01 Z BLADE FAN 10 IN 34 DEG, ICEOMATIC

9131032-01 Z FLOAT ASSY ECO-5264**, ICEOMATIC

9131012-01 Z AUGER, ICEOMATIC

9131009-02 ZO-RING 1-5/8 ID X 1/8, ICEOMATIC

9131010-02 ZPIN LOCATING, ICEOMATIC

9121039-01 YBEARING TAPERED 2.44OD, ICEOMATIC

9121039-02 Y BEARING TAPERED 2.05OD, ICEOMATIC

9121025-91 YSEAL AND FACE, ICEOMATIC

9121001-05 BEARING 1.18 IDX2.44 OD, ICEOMATIC

9111004-92 ZCOUPLING HALF 3/4 DIA, ICEOMATIC

9111002-29 Z PULLEY 2.80ODX5/8, ICEOMATIC

9111002-15 ZPULLEY 5.95 ODX5/8 BORE, ICEOMATIC

9111002-28 ZPULLEY 3.25 ODX5/8 BORE, ICEOMATIC

9111002-08 Z PULLEY 7.93ODX5/8, ICEOMATIC

9111001-10 Z V-BELT #2290, ICEOMATIC

9101084-02 RELAY 2 POLE 240 V, ICEOMATIC

9101148-01 TIMER MODULE, ICEOMATIC
