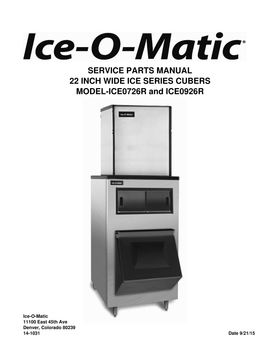

Ice-O-Matic ICE0926R Parts Breakdown | Genuine OEM Parts

9131026-02 CAPLUG 1-3/8 W/ HOLE, ICEOMATIC

9051170-04 PANEL EVAP LH LG W/AG, ICEOMATIC

2041338-02 TUBE WATER DIST RH ASSY, ICEOMATIC

9181139-11 KIT SERV. COMPRESSOR 01, ICEOMATIC

9181140-11 KIT SERV. COMPRESSOR 01, ICEOMATIC

9181010-12 RELAY POTENTIAL, ICEOMATIC

9181009-16 CAPACITOR RUN 30UF@370, ICEOMATIC

9181002-02 SLEEVE, ICEOMATIC

9181002-09 GROMMET, ICEOMATIC

9181003-07 CAPACITOR ST 145-174@220, ICEOMATIC

9161117-01 MOTOR FAN 208/230V-50/60, ICEOMATIC

9161079-03 PUMP WATER 3000 RPM 230V, ICEOMATIC

9051541-01 TUBE PURGE, ICEOMATIC

9151163-03 FILTER/DRIER EK053S(ECT), ICEOMATIC

9151165-01 TXV DAN FOSS, ICEOMATIC

9151123-04 COIL SOL VALVE 230V, ICEOMATIC

9151139-01 CHECK VALVE, ICEOMATIC

9151143-02 FILTER 1/2 ID, ICEOMATIC

9151143-01 FILTER 3/8 ID, ICEOMATIC

9151123-02 BODY SOL VALVE 200RB 4T3, ICEOMATIC

9151142-02 ZVALVE HEAD PRESS 217 LB, ICEOMATIC

9151060-01 RECEIVER, ICEOMATIC

9131508-01 INSULATION BASE, ICEOMATIC

9131452-01 GUARD FAN REMOTE, ICEOMATIC

9131451-01 BLADE FAN VRC, ICEOMATIC

9131111-101 KIT SERVICE FOR -01, ICEOMATIC

9101348-01 Z SWITCH ROCKER PURGE, ICEOMATIC

9101084-02 RELAY 2 POLE 240 V, ICEOMATIC

9101195-01 SWITCH ROCKER DPDT, ICEOMATIC

9101148-01 TIMER MODULE, ICEOMATIC

9101218-16 CORDSET WATER PUMP, ICEOMATIC

9101083-01 SOCKET RELAY 2 POLE, ICEOMATIC

9101124-02 SWITCH LIMIT SPDT, ICEOMATIC

9101002-06 CONTACTOR 230V 30A, ICEOMATIC

9091140-01 FITTING DRAIN, ICEOMATIC

9091001-12 COUPLING HALF 1/2 W/ STU, ICEOMATIC

9091083-01 FITTING WATER INLET, ICEOMATIC

9091074-01 FITTING DROP ADAPT 3/8FP, ICEOMATIC

9091001-11 COUPLING HALF 3/8 W/ STU, ICEOMATIC

9091083-03 NUT WATER INLET, ICEOMATIC
