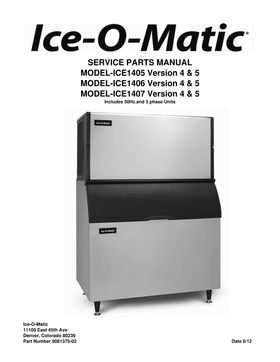

Ice-O-Matic ICE1406W3 Parts Breakdown | Genuine OEM Parts

9131383-01 BLADE FAN 10 OD 37 DEG, ICEOMATIC

9131026-02 CAPLUG 1-3/8 W/ HOLE, ICEOMATIC

9091080-01 FITTING BARREL, ICEOMATIC

2041338-01 TUBE WATER DIST LH ASSY, ICEOMATIC

2041338-02 TUBE WATER DIST RH ASSY, ICEOMATIC

9181143-12 KIT SERV. COMPRESSOR 02, ICEOMATIC

9181142-11 KIT SERV. COMPRESSOR 01, ICEOMATIC

9181010-04 RELAY POTENTIAL, ICEOMATIC

9181010-10 RELAY POTENTIAL, ICEOMATIC

9181009-20 CAPACITOR RUN 40MFD 370V, ICEOMATIC

9181009-12 CAPACITOR RUN 35MFD 370V, ICEOMATIC

9181003-19 CAPACITOR ST 145-174@250, ICEOMATIC

9181003-34 CAPACITOR ST 219-259@330, ICEOMATIC

9161118-01 MOTOR FAN 1/4 HP 230V, ICEOMATIC

9161117-01 MOTOR FAN 208/230V-50/60, ICEOMATIC

9161117-02 MOTOR FAN 115V-60HZ, ICEOMATIC

9161079-06 PUMP WATER 3000 RPM 230V, ICEOMATIC

9151123-04 COIL SOL VALVE 230V, ICEOMATIC

9151139-01 CHECK VALVE, ICEOMATIC

9151150-01 VALVE THERMO EXP, ICEOMATIC

9151143-02 FILTER 1/2 ID, ICEOMATIC

9151143-01 FILTER 3/8 ID, ICEOMATIC

9151123-02 BODY SOL VALVE 200RB 4T3, ICEOMATIC

9151027-06 VALVE HEAD PRESS 240LB, ICEOMATIC

9151060-01 RECEIVER, ICEOMATIC

9151027-07 VALVE HEAD PRESS 220LB, ICEOMATIC

9141136-01 CONDENSER AIR, ICEOMATIC

9141061-02 CONDENSER WATER, ICEOMATIC

9141135-01 CONDENSER AIR, ICEOMATIC

9141132-01 CONDENSER AIR ICE1400, ICEOMATIC

9131452-01 GUARD FAN REMOTE, ICEOMATIC

9131461-01 BLADE FAN, ICEOMATIC

9131460-01 GUARD FAN, ICEOMATIC

9131451-01 BLADE FAN VRC, ICEOMATIC

9131111-02 FLOAT VALVE PLASTIC, ICEOMATIC

9101084-02 RELAY 2 POLE 240 V, ICEOMATIC

9101195-01 SWITCH ROCKER DPDT, ICEOMATIC

9101139-03 SWITCH ROCKER SPDT, ICEOMATIC

9101148-01 TIMER MODULE, ICEOMATIC

9101124-02 SWITCH LIMIT SPDT, ICEOMATIC
