IYT0620A-261

Parts associated with IYT0620A (confirm with breakdown)

• 3005569 — Air Filter (14.29" × 16.94")
• 000008850 — Air Condenser
• 000013957 — Fan Shroud
• 2416203 — Fan Blade
• 2412929 — Fan Motor (115V/60Hz)
• 2412939 — Fan Motor (208–230V/50–60Hz)
• 000014018 — Fan Motor Bracket
• 5033589 — Screw
• 5545109 — Lock Washer
• 5429529 — Hex Nut
• 5573059 — Flat Washer
• 5429559 — Rubber Wellnut
• 5202099 — Screw #10-24 × 0.5" PHIL
• 5202069 — Screw #10-24 × 0.5" HEX
• 000015208 — Control Board
• 4302253 — Control Board Mounting Supports
• 000015009 — Ceramic Fuse (6.3A)
• 000012264 — Refrigeration Service Valve Assembly (0.3125")
• 000014395 — Control Board Box
• 000010901 — Control Board Box Cover
• 2502189 — Bushing (0.625")
• 5202169 — Screw #10-24 × 0.5" Ground
• 5573209 — Star Washer
• 000014363 — Start Component Box
• 000010910 — Start Components Box Cover
• 000014323 — PTCR (12A)
• 2006589 — Contactor (115V/60Hz/1φ)
• 2006599 — Contactor (230V/50–60Hz/1φ)
• 000005488 — Run Capacitor (115–230V/50–60Hz)
• 000011640 — Run Capacitor (230V/50–60Hz)
• 5005309 — Capacitor Mounting Bracket
• 2006143 — Terminal Block (50Hz, 3-pole)
• 2500139 — Bushing (1.5")
• 2500019 — Bushing (1.187")
• 000014639 — Control Box Wiring Harness (115V/60Hz/1φ)
• 000014659 — Control Box Wiring Harness (230V/60Hz/1φ)
• 000014660 — Control Box Wiring Harness (230V/50Hz/1φ)
• 000011182 — Wiring Harness, Compressor (Samsung)
• 000014638 — Wiring Harness, PTCR
• 000014595 — Wire Lead, Air
• 000011339 — Evaporator (Dice)
• 000011340 — Evaporator (Half-Dice)
• 000011341 — Evaporator (Regular)
• 7602799 — Evaporator Top Frame Assembly (22")
• 4010463 — Evaporator Bottom Frame Assembly
• 5429139 — Hex Nut #8-32 (Brass)
• 000016053 — Water Level Probe
• 000007099 — Wire: Control Box → Probe
• 000007053 — Water Level Probe Holder
• 2008929-ORA — Water Pump (115V/60Hz)

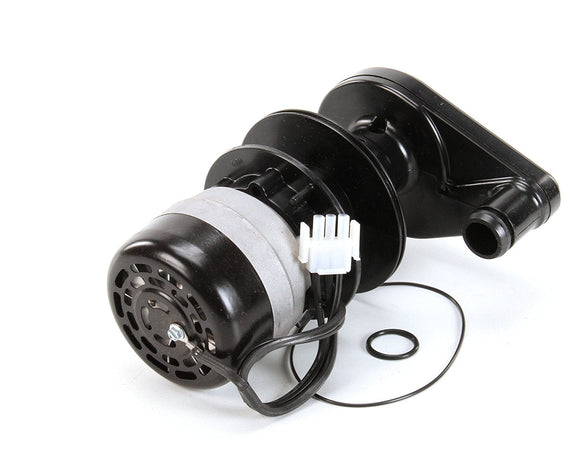

• 2008939 — Water Pump (230V/60Hz)
• 2008949 — Water Pump (230V/50Hz)
• 000013413 — Water Pump (200V/50–60Hz)
• 000010244 — Water Pump Mount
• 7602779 — Water Diverter (22")
• 5305123 — SS Thumbscrew #8-32 × 0.44"
• 000011512 — Water Trough (22")
• 4011189 — Water Curtain
• 000009188 — Foodzone Seal Panel
• 6065389 — Evaporator Top Filler Panel
• 6063339 — Bracket, Top Filler Panel
• 000015292 — Ice Thickness Control Probe
• 7602789 — Water Distribution Tube (22")
• 5004649 — O-Rings (0.675")
• 000007888 — Magnetic Bin Switch
• 000014038 — Bin Switch Wiring Harness
• 000015153 — Touchscreen Housing Assembly
• 5004799 — SS Thumbscrew #8-32 × 0.375"
• 5004629 — O-Ring (0.125" ID)
• 5004619 — Screw #12-16 × 0.687"
• 5004659 — Water Pump Base O-Ring (4.00")
• 5004679 — Water Pump Outlet O-Ring (0.875")
• 000010462 — Compressor (Samsung, 115V/60Hz/1φ)
• 000010463 — Compressor (Samsung, 230V/60Hz/1φ)
• 000010464 — Compressor (Samsung, 230V/50Hz/1φ)
• 000011145 — Overload Protector (115V/60Hz)
• 000014410 — Overload Protector (230V/60Hz)
• 000010853 — Overload Protector Bracket
• 000009120 — Water Inlet Valve (115V/60Hz/1φ)
• 000009126 — Water Inlet Valve (208–230V/50–60Hz)
• 000014062 — Water Dump Valve (115V/60Hz)
• 000014063 — Water Dump Valve (208–230V/50–60Hz)
• 6058459 — Mounting Bracket, Water Dump Valve
• 4420383 — Clear Tubing (0.625" ID)
• 000015045 — Harvest Solenoid 0.375" × 0.375" (incl. 115V coil)
• 000005156 — Solenoid Coil Only (115V/60Hz)
• 000015044 — Harvest Solenoid 0.375" × 0.375" (incl. 208–230V coil)
• 000005157 — Solenoid Coil Only (230V/50–60Hz)
• 000015361 — Drier w/ Access Port (0.25")
• 000015020 — Expansion Valve
• 000012443 — Valve Insulation Boot (Body, Danfoss)
• 4007203 — Valve Insulation Boot (Bulb)
• 000011170 — Manifold Strainer
• 6058571 — Bracket, Access Valves/Manifold Strainer
• 000010699 — Grommet, Manifold Strainer
• 000013531 — Fan Cycling Control (335–275 psig)
• 000013576 — High-Pressure Cut-out (450–600 psig)
• 000015334 — Insulated Tube
• 5650609 — Snap Clamp (1.0" ID)
• 5650709 — Snap Clamp (0.8" × 0.9" ID)
• K00454 — LuminIce II Bulb
• 000005423 — Female Wing Adapter (0.5")
• 4420291 — Tygon Tube (0.25" OD)
• 8706093 — Female Wing Adapter (Brass, 0.375")
• 1360961 — Male Connector (0.375")
• 000015573 — Thermistor w/ Spring Clips
• 5650733 — Cable Tie (8.0" L)
• 000001382 — Vinyl Tubing (0.625" ID)
• 6038831 — Insulation (0.88" ID × 0.25" W × 13.5" L)
• 000007222 — Air Assist (115V)
• 000007223 — Air Assist (230V)
• 4011739 — Air Manifold
• 000006489 — Air Assist Bracket
• 3001453 — Air Assist Nozzle
• 4420883 — Vinyl Tubing (0.25" ID)
• 9002593 — Clear PVC Tubing (0.125" ID × 0.25" OD)
• 4010439 — Tubing, Water Inlet Valve
• 000000288 — Clip-on Tubing Elbow
• 000015352 — Compressor Base (Metal)
• 8503069 — Mounting, Rubber Grommet
• 8503949 — Mounting, Sleeve
• 5004819 — Compressor Mounting Bolt
• 5004829 — Compressor Mounting Nut
• 5650529 — Clamp, Expansion Valve Bulb
• 3000503 — Strap, Expansion Valve Bulb (0.5")
• 000011604 — Plug, Float Hole
• 000010320 — Terminal Cover
• 000008892 — Receiver
• 000000045 — Water-cooled Condenser
• 000013475 — Water Regulating Valve (0.375")
• 8930259 — Drier (no access port, 0.25")
• 000005423 — Female Wing Adapter (0.5")
• 8706083 — Female Wing Adapter (Brass, 0.5")
• 8706103 — Female Wing Adapter (0.5" NPT × 0.375" ODF)
• 8700393 — Reducing Nipple (0.75" × 0.38")
• 6000541 — Receiver Strap
• 5002159 — Elbow (0.375" MF × 0.375" MPT)
• 5573419 — Washer
• 000010604 — Mounting Base (Condenser/Receiver)
• 000015669 — Front Panel Assembly (22" × 21.5")
• 040008050 — Front Panel Assembly (SS)
• 000006560 — Front Panel Top Endcap
• 040007383 — Front Panel Top Endcap (SS)
• 000006565 — Front Panel Bottom Endcap
• 040007384 — Front Panel Bottom Endcap (SS)
• 000007047 — Front Panel LCD Frame (w/o key guard)
• 5004899 — Front Panel Screw
• 000009024 — Foam Tape (0.375" × 0.375" × 12.0")
• 4012029 — Top Cover
• 000012616 — Left Side Panel (21.5" H)
• 040005623 — Left Side Panel (21.5" H, SS)
• 000012615 — Right Side Panel (21.5" H)
• 040005622 — Right Side Panel (21.5" H, SS)
• 000014362 — Back Panel (Air-cooled)
• 000007314 — Air Baffle Assembly
• 000010050 — Front Top Support
• 5005379 — Mounting Screw (#8-32 × 1.0" PHIL)
• 5005099 — Screw (#10-16 × 0.625")
• 7602829 — Bottom Door Frame
• 6068649 — Left Top Channel
• 000010981 — Right Top Channel
• 000010907 — Back Panel w/ Electrical Box (Water-cooled)
• 000008022 — Back Coupling Panel (Water-cooled)
• 000010299 — Left Corner Post
• 3005579 — Left Panel Pivot Leaf Hinge
• 000001127 — Tapping Plate (Panel Hinge Screws)
• 6067289 — Rear Connection Box
• 6067299 — Cover, Rear Connection Box
• 2006143 — Terminal Block (50Hz, 3-pole)
• 5202169 — Screw #10-24 × 0.5" Ground
• K00438 — Top Air Discharge Kit
• 7112319 — Cartoning
