Click Here for IYT0750A parts breakdown

Parts associated with IYT0750A (confirm with breakdown)

• 7602839 — Evaporator (Dice)
• 7602849 — Evaporator (Half Dice)
• 4010979 — Water Curtain
• 000016053 — Water Level Probe
• 000007724 — Wire, Control Box → Water Level Probe
• 000007053 — Water Level Probe Holder
• 5202099 — Screw #10-24 × 0.5" PHIL
• 2008109 — Water Pump (230V/60Hz)
• 8252109 — Water Pump (230V/50–60Hz)
• 000010244 — Water Pump Mount
• 7602213 — Water Diverter (30" models)
• 5305123 — Thumbscrew SS #8-32 × 0.44"
• 000010828 — Water Trough (30")
• 000010322 — Foodzone Seal Panel (30")
• 4008469 — Evaporator Top Filler Panel
• 6063339 — Bracket, Top Filler Panel
• 000015292 — Ice Thickness Control Probe
• 7602193 — Water Distribution Tube (30")
• 5004649 — O-Rings (0.675")
• 7602203 — Evaporator Top Frame Assembly (30")
• 040008623 — Evaporator Top Frame Assembly (30") w/o RTV
• 4009613 — Evaporator Bottom Frame Assembly
• 5429139 — Hex Nut #8-32 (Brass)
• 000007888 — Magnetic Bin Switch
• 000014038 — Bin Switch Wiring Harness
• 000015154 — Touch Screen Housing Assembly (30"/48")
• 000006697 — Mounting Bracket (Touchscreen Housing)
• 5004799 — SS Thumbscrew #8-32 × 0.375"
• 5004629 — O-Ring (0.125" ID)
• 5004619 — Screw #12-16 × 0.687"
• 5004659 — Water Pump Base O-Ring (4.00")
• 5004679 — Water Pump Outlet O-Ring (0.875")
• 000015667 — Front Panel Assembly (30" × 21.5")
• 040008047 — Front Panel Assembly (SS)
• 000006538 — Left Side Panel (21.5" H)
• 040007386 — Left Side Panel (21.5" H, SS)
• 000006539 — Right Side Panel (21.5" H)
• 040007387 — Right Side Panel (21.5" H, SS)
• 3005689 — Air Filter (18.88" × 17.19")
• 000011039 — Back Panel (Air-cooled)
• 000007314 — Air Baffle Assembly
• 000011092 — Back Panel (Water-cooled/Remote)
• 6061739 — Back Coupling Panel (Water-cooled/Remote)
• 000008482 — Panel, Water Regulating Valve (High Pressure)
• 000010051 — Front Top Support
• 5005379 — Mounting Screw #8-32 × 1.0" PHIL
• 5005099 — Screw #10-16 × 0.625"
• 7602263 — Bottom Door Frame
• 5202099 — Screw #10-24 × 0.5" PHIL
• 000001127 — Tapping Plate (Panel Hinge Screws)
• 000011326 — Right Corner Post
• 000011032 — Right Top Channel
• 6068649 — Left Top Channel
• 000011100 — Left Corner Post
• 6067289 — Rear Connection Box
• 6067299 — Cover, Rear Connection Box
• 2006143 — Terminal Block (50Hz, 3-pole)
• 5202169 — Screw #10-24 × 0.5" Ground
• K00379 — Top Air Discharge Kit (option)
• 7112239 — Cartoning
• 000006564 — LCD Frame (without Key Guard)
• 000012003 — Bulkhead Gasket
• 000008868 — Air Condenser
• 2412939 — Fan Motor (208–230V/50–60Hz)
• 2416173 — Fan Blade
• 000014016 — Fan Shroud
• 5202069 — Screw #10-24 × 0.5" HEX
• 5033589 — Screw
• 5545109 — Lock Washer
• 5573059 — Flat Washer
• 5429559 — Rubber Wellnut
• 5429529 — Hex Nut
• 000014179 — Compressor (Samsung, 208–230V/60Hz)
• 040004801 — Compressor (220–240V/50Hz)
• 000016231 — Compressor (220–240V/50Hz)
• 000011182 — Wiring Harness, Compressor (Samsung)

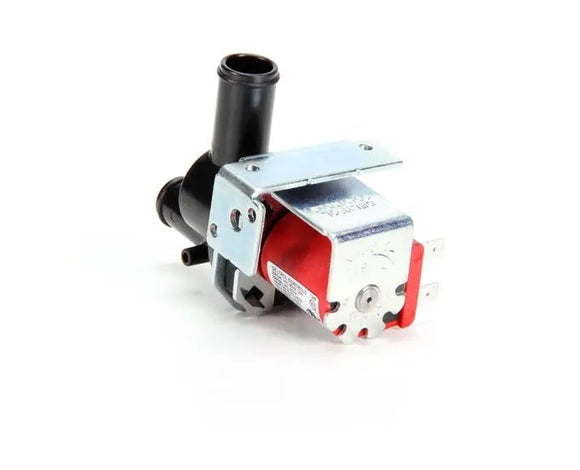

• 000014063 — Water Dump Valve (208–230V/50–60Hz)
• 000009122 — Water Inlet Valve (208–230V/50–60Hz)
• 000015042 — Harvest Solenoid 0.375" × 0.375" (incl. 208–230V coil)
• 000005157 — Solenoid Coil Only (230V/50–60Hz)
• 000015026 — Expansion Valve
• 000015291 — Expansion Valve
• 000015022 — Expansion Valve
• 000015012 — Expansion Valve (Danfoss)
• 000012443 — Valve Insulation Boot (Body)
• 000002719 — Valve Insulation Boot (Bulb)
• 5650529 — Clamp, Expansion Valve Bulb
• 3000503 — Strap, Expansion Valve Bulb (0.5")
• 000015361 — Drier w/ Access Port (0.25")
• 000015402 — Insulated Tube
• 5650609 — Snap Clamp (1.0" ID)
• 5650709 — Snap Clamp (0.8" × 0.9" ID)
• 8706093 — Female Wing Adapter (Brass, 0.375")
• 1360961 — Male Connector (0.375")
• 000005423 — Female Wing Adapter (0.5")
• 000008346 — Compressor Base
• 8503069 — Mounting, Rubber Grommet
• 8503949 — Mounting, Sleeve
• 5004819 — Compressor Mounting Bolt
• 5004829 — Compressor Mounting Nut
• 4420383 — Clear Tubing (0.625" ID)
• 4420291 — Tygon Tube (0.25" OD)
• 4010439 — Tubing, Water Inlet Valve
• 000001382 — Vinyl Tubing (0.625" ID)
• 6038831 — Insulation (0.88" ID × 0.25" W × 13.5" L)
• 000015573 — Thermistor w/ Spring Clips
• K00454 — LuminIce II Bulb
• 000014037 — LuminIce II Wiring Harness
• 000007222 — Air Assist (115V)
• 000007223 — Air Assist (230V)
• 4011739 — Air Manifold
• 000014419 — Air Assist Bracket
• 4420883 — Vinyl Tubing (0.25" ID)
• 9002593 — Clear PVC Tubing (0.125" ID × 0.25" OD)
• 5202069 — Screw #10-24 × 0.5" HEX
• 000011604 — Plug, Float Hole
• 000010320 — Terminal Cover
• 8253039 — Water-cooled Condenser
• 000013475 — Water Regulating Valve (0.375")
• 000008892 — Receiver
• 8930259 — Drier (no access port, 0.25")
• 8332033 — Water Coupling
• 6000541 — Receiver Strap
• 5002249 — Elbow (0.5" MF × 0.375" MPT)
• 5003883 — Flare Nut (0.5")
• 5573419 — Washer
• 000010604 — Mounting Base (Water Condenser/Receiver)
• 8706083 — Female Wing Adapter (Brass, 0.5")
