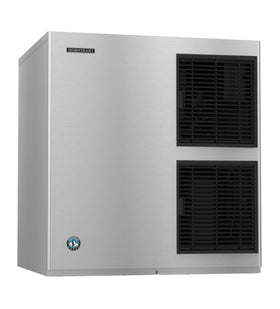

KM-1100MAH

Parts associated with KM-1100MAH

• 415949G10 — 12a Thumbscrew
• 433410-01 — 8 Junction Box Cover
• 441569-02 — 25 Strainer
• 4A2666-01 — 32 Drier
• 4A3959-01 — 31 Fan Blade
• 427430-01 — 28 Thermistor Holder
• 4A1477-01 — 14 Voltage Tap Switch
• 1A3617G01 — 4 Right Side Panel
• 2A2062G01 — 10 Air Filter
• 3A2371-01 — 7 Control Box Cover
• 3A0944-01 — 19 Thermostatic Expansion Valve
• 4A3277-01 — 23 Valve Coil
• 4A1373-01 — 24 Check Valve
• 3A1941A01 — 3 Top Panel
• 3A3903-01 — 11 Bulb Holder
• 4A3978-01 — 21 Hot Gas Valve Body
• 443192-02 — 30 Fan Motor Capacitor 5MFD
• 322714G01 — 6 Top Insulation
• 1A3621-01 — 1 Front Panel
• 3A0107-01 — 20 Thermostatic Expansion Valve
• 1A3820G01 — 17 Evaporator
• 4A4008-01 — 18 Thermostatic Expansion Valve
• 3A8392G01 — 5 Front Insulation
• 4A5695-01 — 13 Main Transformer
• 1A0547-01 — 9 Louver
• 4A4134-03 — 15 Compressor
• 4A3158-01 — 29 Fan Motor
• 4A3276-01 — 22 Liquid Line Valve Body
• 463180-04 — 26 High-Pressure Switch
• 4A2414-01 — 9a Push Retainer
• 1A3601G01 — 33 Heat Exchanger
• 1A3559-01 — 16 Condenser
• 4A0808L02 — 2 Gasket L=762 mm
• 322815G02 — 12 Bulb Holder Bracket
• 429006-03 — 27 Thermistor
• 3A7323-01 — 14 Condenser
• 463180-05 — 26 High-Pressure Switch
• 4A1539-03 — 13 Compressor
• 4A0911-07 — 15 Water Regulating Valve
• 1A3621-02 — 1 Front Panel
• 4A1087-01 — 16 Male Connector
• 434136G01 — 29 Discharge Line Coupling
• 437652-01 — 14 Receiver
• 4A3887G01 — 30 Liquid Line Coupling
• 4A5397-02 — 15 Crankcase Heater
• 4A0177-01 — 30 Distributor A (Tee)
• 1A0260-01 — 14 Right Spray Tube
• 4A1234-01 — 24 O-Ring
• 3A7682-01 — 2 Pump Motor
• 4A5216G04 — 10 Water Supply Pipe
• 212636-01 — 8 Pump Housing
• 215693A01 — 1 Pump Motor Assembly S-0731
• 432426-01 — 31 Distributor B (Tee)
• 215383-01 — 26 Cleaning Valve Handle
• 4A2546-01 — 27 Cleaning Valve Microswitch
• 322691-02 — 23 Overflow Pipe
• 325826-01 — 29 Cleaning Valve Male Adaptor
• 2A4282-02 — 15 Spray Guide
• 426799-01 — 17 Float Switch Connector
• 322685-01 — 20 Spring
• 435057-01 — 9 Pump Motor Bracket
• 326655-01 — 25 Hose (C)
• 2A0079-01 — 34 Left Water Supply Tube
• 439293-01 — 28 Cleaning Valve Ball Valve
• 4A3820-01 — 3 Mechanical Seal
• 7716-2025 — 36 Vinyl Hose L=470 mm
• 7730I3812 — 32 Silicone Hose L=135 mm
• 433705-01 — 19 Valve Seat
• 435092-01 — 35 Drain Hose
• 4A0648-01 — 7 Pin
• 428548-01 — 6 Impeller
• 7B02-0430 — 8a Hexagon Bolt 4×30
• 4A3624-02 — 16 Float Switch
• 1A0260-02 — 13 Left Spray Tube
• 215662-01 — 4 Pump Flange
• 428547-01 — 5 Packing
• 322816-01 — 22 Overflow Cap
• 413854-03 — 11 Rubber Gasket
• 4A5251-08 — 12 Inlet Water Valve
• 2A0079-02 — 33 Right Water Supply Tube
• 3A1170-01 — 18 Drain Valve Housing
• 7716-1519 — 39 Vinyl Hose L=47 mm
• 435825-01 — 44 Spring
• 427443-08 — 27 mm
• 439267-01 — 48 Flange
• 432763-01 — 45 Connector
• 4A0176-01 — 46 Plug
• 214905-01 — 40 Cube Guide A
• 439265-01 — 42 Bypass Hose
• 439236-01 — 43 Rubber Ring
• 427443-03 — Hose Clamp 25 mm
• 435091-01 — 47 Inlet Hose A
• 415949G12 — 41a Thumbscrew
• 322644-02 — 41 Cube Guide B
• 427443-05 — 18 mm
• 443192-01 — 5 Pump Motor Capacitor 10MFD
• 4A4883G01 — 8 K4 Jumper
• 3A2005-03 — 2 Run Capacitor 30MFD
• 4A0336-03 — 7a Control Board Support
• 443119-01 — 9 Control Switch
• 4A3140-01 — 4 Compressor Relay
• 3A0172-01 — 6 Control Transformer
• 4A1107-13 — 3 Start Relay
• 3A0076-11 — 1 Start Capacitor 145-174MFD
• 4A5443-01 — 10 Fuse Holder
• 2A3792-01 — 7 Control Board
• 406132-07 — 13 Relay (X10 and X11)
• 4A0893-07 — 11 Fuse GMD-10A
• 4A2879-02 — 12 Bin Control Thermostat
• 4A0363-01 — 3 Universal Brace
• 4A0560-01 — 1 Hoshizaki Emblem Label
• 475552L02 — 2 Penguin Label
• 7B02-0512 — 3a Hex Head Bolt
