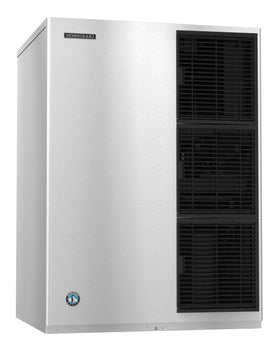

KM-1340MAH

Parts associated with KM-1340MAH

• 415949G10 — 11a Thumbscrew
• 104442G03 — 16 Evaporator Assembly
• 4A1482-01 — 18 Thermostatic Expansion Valve
• 441569-02 — 25 Strainer
• 4A2666-01 — 32 Drier
• 427430-01 — 28 Thermistor Holder
• 2A2062G01 — 10 Air Filter
• 4A1373-01 — 24 Check Valve
• 3A0944-01 — 19 Thermostatic Expansion Valve
• 4A3277-01 — 23 Valve Coil
• 2A8088-01 — 3 Top Panel
• 4A1412-01 — 14 Compressor
• 4A1412-03 — 14 Compressor
• 3A3903-01 — 12 Bulb Holder
• 4A3978-01 — 21 Hot Gas Valve Body
• 443192-02 — 30 Fan Motor Capacitor 5MFD
• 322714G01 — 6 Top Insulation
• 2A2164-01 — 1 Front Panel
• 2A2165G01 — 4 Right Side Panel
• 3A2386-01 — 7 Control Box Cover
• 3A0107-01 — 20 Thermostatic Expansion Valve
• 103317G01 — 17 Evaporator Plate
• 322711G01 — 5 Front Insulation
• 433441-07 — 26 High-Pressure Switch
• 1A1093-01 — 15 Condenser
• 425307-02 — 13 Capillary Ring
• 444898-01 — 31 Fan Blade
• 1A0547-01 — 9 Louver
• 4A3158-01 — 29 Fan Motor
• 4A3276-01 — 22 Liquid Line Valve Body
• 463180-04 — 26 High-Pressure Switch
• 4A2414-01 — 9a Push Retainer
• 433410-01 — 8 Junction Box Cover
• 4A0808L02 — 2 Gasket L=762 mm
• 322815G02 — 11 Bulb Holder Bracket
• 429006-03 — 27 Thermistor
• 463180-05 — 26 High-Pressure Switch
• 433441-05 — 26 High-Pressure Switch
• 4A0911-07 — 14 Water Regulating Valve
• 4A1087-01 — 15 Male Connector
• 2A2359G04 — 13 Condenser
• 3A7236-01 — 13 Condenser
• 2A2164-02 — 1 Front Panel
• 4A1484-03 — KM-1340MRH3
• 4A1412-02 — 13 Compressor
• 434136G01 — 30 Discharge Line Coupling
• 437652-01 — 14 Receiver
• 2A2163-01 — 3 Top Panel
• 4A5695-01 — 12 Main Transformer KM-1340MRH3
• 4A3887G01 — 31 Liquid Line Coupling
• 4A5397-02 — 15 Crankcase Heater
• 322691-01 — 39 Overflow Pipe
• 4A0177-01 — 28 Distibutor A (Tee)
• 1A0260-01 — 18 Right Spray Tube
• 4A1234-01 — 40 O-Ring
• 435091-01 — 26 Inlet Hose A
• 3A7682-01 — 2 Pump Motor
• 322644-02 — 22 Cube Guide B
• 4A5216G04 — 10 Water Supply Pipe
• 212636-01 — 8 Pump Housing
• 7R22-0600 — 3b Tooth Washer M6, SS
• 215693A01 — 1 Pump Motor Assembly S-0731
• 432426-01 — 27 Distributor Tee
• 7B02-0640 — 3a Hex Head Bolt 6x40, SS
• 208586-01 — 19 Spray Guide
• 214905-01 — 21 Cube Guide A
• 7N12-0600 — 3c Hex Nut M6, SS
• 3U0111-02 — 12 Inlet Water Valve
• 2A0079-01 — 13 Left Water Supply Tube
• 435057-01 — 9 Pump Motor Bracket
• 426799-01 — 31 Float Switch Connector
• 322685-01 — 35 Spring
• 326655-01 — 37 Distributor Hose (C)
• 4A3820-01 — 4 Mechanical Seal
• 7716-2025 — 16 Vinyl Hose L=63 mm
• 7W22-0600 — 3e Flat Washer M6, SS
• 4A0176-01 — 20 Plug
• 433705-01 — 34 Valve Seat
• 435092-01 — 25 Drain Hose
• 428548-01 — 6 Impeller
• 4A0648-01 — 7 Pin SS
• 7B02-0430 — 8a Hexagon Bolt 4×30, SS
• 415949G12 — 21a Thumbscrew
• 435054-01 — 36 Lower Drain Valve Housing
• 435269-01 — 24 Collar
• 7L22-0600 — 3d Split Lock Washer M6, SS
• 7J02-0400 — 8b Hex Flange Nut M4, SS
• 4A3624-02 — 30 Float Switch
• 1A0260-02 — 17 Left Spray Tube
• 215662-01 — 3 Pump Flange
• 428547-01 — 5 Packing
• 322816-01 — 38 Overflow Cap
• 413854-03 — 11 Rubber Gasket
• 2A0079-02 — 14 Right Water Supply Tube
• 3A0133-01 — 23 Plate
• 3A1170-01 — 32 Upper Drain Valve Housing
• 7716-1519 — 15 Vinyl Hose L=58 mm
• 435825-01 — 52 Spring
• 439293-01 — 43 Cleaning Valve Ball Valve
• 439267-01 — 49 Flange
• 427443-08 — 27 mm
• 215383-01 — 41 Cleaning Valve Handle
• 439392-01 — 48 Corner Insulation (B)
• 4A2546-01 — 42 Cleaning Valve Microswitch
• 439265-01 — 45 Bypass Hose
• 325826-01 — 44 Cleaning Valve Male Adaptor
• 439376-01 — 47 Corner Insulation (A)
• 7730I3812 — 50 Silicone Hose L=80 mm
• 322692-01 — 56 Holder
• 439236-01 — 46 Rubber Ring
• 427443-03 — 25 mm
• 432763-01 — 53 Connector
• 427443-05 — Hose Clamp 18 mm
• 2A1410-01 — 7 'E' Control Board KM-1340MAH
• 3A0076-01 — 1 Start Capacitor 145-174MFD
• 443192-01 — 5 Pump Motor Capacitor 10MFD
• 4A4883G01 — 8 K4 Jumper
• 443119-01 — 9 Control Switch
• 4A0336-03 — 7a Control Board Support
• 4A1107-09 — 3 Start Relay
• 4A3140-01 — 4 Compressor Relay KM-1340MAH
• 3A0172-01 — 6 Control Transformer
• 4A5096-01 — KM-1340MRH
• 3A2005-05 — 2 Run Capacitor 35MFD
• 4A5443-01 — 10 Fuse Holder (control)
• 2A3792-01 — 'G' Control Board KM-1340MAH
• 406132-07 — 13 Crankcase Heater Relay KM-1340MRH
• 4A0893-07 — 11 Fuse (control) AGC-10A
• 4A2879-02 — 12 Bin Control Thermostat
• 4A0560-01 — 1 Hoshizaki Emblem Label
• 4A0363-01 — 3 Universal Brace
• 7B02-0512 — 3a Hex Head Bolt
• 4A0526-01 — 2 Penguin Label
