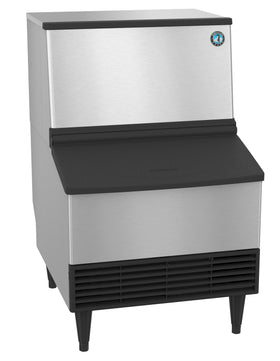

KM-201BAH

Parts associated with KM-201BAH

• F016-3164 — Number
• 120502A01 — C WATER CIRCUIT
• 371015G02 — 11 SIDE PANEL (R,UP)
• 371013G02 — 8 SIDE PANEL (L,UP)
• 370982A01 — D MECHANICAL BIN SWITCH
• 371425A01 — F LOUVER ASSY - 24
• 371199M01 — 6 REAR COVER
• 119152A01 — C WATER CIRCUIT
• 371248M01 — 7 REAR PANEL (UP) - 24
• 255562Z01 — 10 WIRE HARNESS
• 256080A02 — G LABEL LOCATION
• 121372G01 — 14 AIR FILTER B
• A01679-01 — H ACCESSORIES
• 121370P01 — 12 LOUVER B
• P01080-01 — 20 HINGE FYN-P1-R103
• 370969P01 — 19 HINGE MOUNT (R)
• 255322G02 — 3 FRONT COVER - 24
• 371208A02 — E CONTROL BOX ASSY
• 4H0171-01 — 9 TAPER COLLAR
• 415949G12 — 18 THUMBSCREW
• 255268P01 — 15 TOP COVER - 24
• 472571P01 — 16 INSULATION - TOP (24)
• 371178G02 — 17 TOP PANEL - 24
• 118999G02 — 1 BIN ASSY - 24
• 4A2414-01 — 13 PUSH RETAINER 94807A024
• 119149A01 — B REFRIGERATION CIRCUIT
• 420472-02 — 29 BUSHING SR-7K-2
• 472587M01 — 25 CLAMP
• 472743P01 — 28 INSULATION (F) - 24
• 372564M01 — 23 WIRE COVER
• 370970P01 — 22 HINGE MOUNT (L)
• P00004-01 — 21 POWER SUPPLY CORD
• 371214G01 — 26 DOOR ASSY - 24
• 371197M01 — 23 WIRE COVER
• 255033M03 — 27 FRONT PANEL (LO)
• 371399G01 — 18 EVAPORATOR ASSY
• 443158-02 — 17 CAPACITOR
• 374022G01 — 18 EVAPORATOR ASSY
• 374019G01 — 1 BASE ASSY 24
• 472590M01 — 23 BRACKET - HOT GAS
• 371200M01 — 15 BRACKET - FAN MOTOR
• 472435R01 — 20 GROMMET (A)
• 255353M01 — 14 SHROUD - 24
• 4A1452-01 — 3 RUBBER GROMMET
• 4A3277-01 — 24 COIL - VALVE AMS-C12HDU-3
• P01054-01 — 16 FAN MOTOR A4E250-AH36-70
• 371578G01 — 26 COPPER TUBE (A) - H
• 4A3978-01 — 25 VALVE BODY ATS-B7SHDU-2
• 4A2134-04 — 7 STARTING CAPACITOR
• 472560R01 — 22 GROMMET (C2)
• 372010G01 — 1 BASE ASSY 24
• P00812-01 — 29 STRAINER COPPER TUBE (A) - H
• 7920-0003 — 8 TIE CV-150
• 4A4232-01 — 5 STARTER
• 472458M01 — 10 BRACKET (A) - CONDENSER
• P00823-01 — 9 CONDENSER
• P01130-01 — 2 COMPRESSOR NF7CLX 115V 60Hz
• 472437R01 — 21 GROMMET (C1)
• 468180-01 — 4 BOLT
• 472463M01 — 11 BRACKET (B) - CONDENSER
• 4A2141-01 — 6 COVER
• 7762-1323 — INSULATION TUBE
• 472596M01 — 39 COPPER TUBE (A) - L
• 443461-01 — 42 CLAMP
• 7762-2030 — INSULATION TUBE
• 7762-0717 — INSULATION TUBE
• 436455-01 — 55 HOLDER - THERMISTOR
• 324313-02 — COVER (B) - EXP. VALVE
• 370971G01 — 56 SEPARATOR
• 324313-01 — COVER (A) - EXP. VALVE
• 457729-01 — 53 ACCESS VALVE
• 374258M01 — 44 COPPER TUBE (C) - L
• 472597M01 — 37 COPPER TUBE (B) - L
• P00027-01 — 54 THERMISTOR
• 371397M01 — 44 COPPER TUBE (C) - L
• H70717600 — INSULATION TUBE 7762-0717 L=600
• 474848M01 — 37 COPPER TUBE (B) - L
• 472801G01 — 50 COPPER TUBE - ACCESS VALVE
• 472795M01 — 35 COPPER TUBE (B) - H
• 7762-1020 — INSULATION TUBE
• P01129-01 — 40 EXP. VALVE
• 255645G01 — 45 HEAT EXCHANGER
• H73858150 — INSULATION TUBE 7762-3858 L=150
• 370971G02 — 57 SEPARATOR
• 7762-3858 — INSULATION TUBE
• 436000-08 — 38 TEE 111R-642
• 7920-0010 — TIE CV-200
• 371398M01 — 43 COPPER TUBE (C) - H
• 371579G01 — 46 COPPER TUBE (A) - HOT GAS
• 451267-01 — 41 HOLDER - EXPV
• 463180-04 — 31 PRESSURE SWITCH COPPER TUBE (A) - H
• H71020050 — INSULATION TUBE 7762-1020 L=50
• H71323140 — INSULATION TUBE 7762-1323 L=140
• P00026-01 — 36 DRIER
• H72030100 — INSULATION TUBE 7762-2030 L=100
• 436156-01 — PUSH MOUNT TIE T30RSF
• 475111R01 — GROMMET(A2)
• 475110R01 — GROMMET(A1)
• 255329P01 — 16 SPRAY TUBE - 24
• 472436R01 — 18 GROMMET (B)
• 3U0150-01 — 8 WATER VALVE 2L/min
• 2A3362-01 — 4 CUBE GUIDE (A)
• 371173R01 — 22 COVER - PUMP MOTOR
• 118944P01 — 1 TANK - 24
• 118939P02 — 14 SPRAY GUIDE
• 472438R01 — 19 WATER SUPPLY PIPE (A)
• 472564P01 — 26 SOCKET
• P00468-01 — 21 PUMP MOTOR PV-0511BHZ1
• 7920-0002 — 24 TIE CV-100
• 371007M01 — 5 HOOK (B) - TANK
• 371230G01 — 12 WATER SUPPLY PIPE
• 371204M01 — 6 HOOK (D) - TANK
• 372006M01 — 9 BRACKET (A) - WATER VALVE
• 472558R01 — 23 WATER SUPPLY PIPE (E)
• 4A0176-01 — 17 PLUG
• P02909-07 — 㶎Use either of the right
• P00018-02 — 28 SOLENOID VALVE FDC-90-02-115
• 2A3363-01 — 3 CUBE GUIDE (B)
• 250743-03 — 15 WATER SUPPLY TUBE
• 427443-07 — 20 HOSE CLAMP 13.5mm SUS
• 258598P01 — 4 CUBE GUIDE (A)
• 413854-03 — 13 RUBBER GASKET
• 255236R01 — 25 WATER SUPPLY PIPE (F)
• 474711R01 — 46 WATER SUPPLY PIPE(E)
• H72030480 — 33 INSULATION TUBE 7762-2030 L=510
• 472467M01 — 36 BRACKET(B) - WATER VALVE
• 4Y4194P01 — 49 ORIFICE
• H11418030 — 32 SILICONE HOSE ij14×ij18×L30
• H72030150 — 40 INSULATION TUBE 7762-2030 L=150
• 472439R01 — 38 WATER SUPPLY PIPE (B)
• 472441R02 — 48 DRAIN PIPE
• P02909-05 — 㶎Use either of the right
• 258313P05 — 43 SPRAY GUIDE
• H72030200 — 40 INSULATION TUBE 7762-2030 L=150
• 427443-05 — 31 HOSE CLAMP 18mm SUS
• 427443-06 — 30 HOSE CLAMP 20mm SUS
• 472442P01 — 34 DRAIN PIPE (B)
• 474786R01 — 44 GROMMET
• P00816-01 — 35 FLOAT SWITCH OLV-29Z-2P2
• 373853M01 — 45 BRACKET(A) - WATER VALVE
• P02909-06 — 㶎Use either of the right
• 373857G01 — 42 WATER SUPPLY PIPE
• 470303-01 — 37 ELBOW
• 472441R01 — 29 DRAIN PIPE
• H72030510 — 33 INSULATION TUBE 7762-2030 L=510
• 475117M01 — 47 BRACKET(B) - WATER VALVE
• H72030030 — 39 INSULATION TUBE 7762-2030 L=30
• 374254M01 — 41 BRACKET(A) - WATER VALVE
• 370981G01 — 3 ACTUATOR
• 431788-02 — 2 REED SWITCH
• 118845P01 — 1 BASE ACTUATOR
• 472446R01 — 4 GROMMET (E)
• P00033-01 — 7 TOGGLE SWITCH KND203
• 428394-05 — 8 BUSHING OCB-1000
• 427902-04 — 12 CLAMP No.248
• P01771-02 — HKM2006V003
• P00228-01 — 15 CAPACITOR REB474
• P00014-01 — 9 FUSE HOLDER BF115
• P01164-01 — 10 FUSE 250V 5A
• 427902-03 — 11 CLAMP No.249
• 449000-01 — 13 POWER RELAY G7L-1A-TUB
• 472575M01 — 2 BRACKET - CONTROL BOX
• 427902-05 — 16 CLAMP No.4253
• 3A4395-01 — 14 TRANSFORMER
• 118864M01 — 1 CONTROL BOX
• 428394-02 — 6 BUSHING OCB-500
• 468879-01 — 4 BOARD SUPPORT
• P00013-02 — 5 CONTROLLER BOARD HS2006071
• P01032-01 — 2 MAGNET CATCH MC-110NF-GR
• 118900P01 — 1 LOUVER - 24
• 371154G01 — 4 AIR FILTER
• 471180L01 — 6 CAUTION LABEL / SERVICE
• 372028L01 — 7 WIRING LABEL
• 471487L01 — 1 LABEL - PENGUIN
• 256098L01 — 11 MAINTENANCE LABEL
• 370640L01 — 4 CAUTION LABEL / SERVICE
• 453230-01 — 5 LABEL-R-404A
• 426177-01 — 8 LABEL / AIR FILTER
• 372014L01 — 10 LABEL / CONTROL BOARD
• 471384L01 — 3 INSTRUCTION SHEET
• 370310L01 — 9 LABEL - ALARM
• 471486L01 — 1 LABEL - PENGUIN
• 371286L01 — 2 CONTROL LABEL
• 2A2894-01 — 5 REGISTRATION CARD
• 2A4016-01 — 4 WARRANTY CERTIFICATE
• 472736A01 — 1 LEG SET - UNC
• 1H4123P02 — 2 SCOOP
