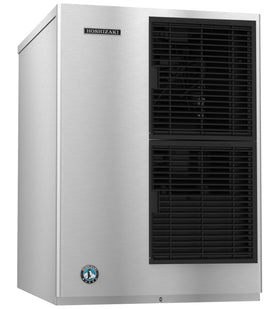

KM-515MAH

Parts associated with KM-515MAH

• 415949G10 — 11a Thumbscrew
• 441569-01 — 31 Strainer
• 2A2117G01 — 4 Right Side Panel
• 3A6040-01 — Mount
• 4A2666-01 — 32 Drier
• 4A3959-01 — 30 Fan Blade
• 427430-01 — 28 Thermistor Holder
• 4A5046G01 — 13 Mechanical Bin Control
• 2A2062G01 — 10 Air Filter
• 415949G11 — 11a Thumbscrew
• 3A0944-01 — 21 Thermostatic Expansion Valve
• 4A3277-01 — 24 Valve Coil
• 4A4463-01 — 17 External Protector
• 2A3767G01 — 1 Front Panel
• 3A3903-01 — 11 Bulb Holder
• 3A4463-01 — Mechanical Bin Control Switch
• 4A3978-01 — 23 Hot Gas Valve Body
• 452359-02 — 14 Power Supply Cord
• 3A0107-01 — 22 Thermostatic Expansion Valve
• 215731G01 — 5 Front Insulation
• 4A4462-01 — 16 Compressor
• 3A2476-01 — 8 Control Box Cover
• 2A4393G01 — 12 Bin Control
• 4A4008-01 — 20 Thermostatic Expansion Valve
• 433441-07 — 26 High-Pressure Switch
• 4A5261-01 — 15 Main Transformer
• 215730G01 — 6 Top Insulation
• 1A0547-01 — 9 Louver
• 106492G01 — 19 Evaporator
• 4A3158-01 — 29 Fan Motor
• 4A3276-01 — 25 Liquid Line valve Body
• 463180-04 — 26 High-Pressure Switch
• 3A3878A01 — 3 Top Panel
• 4A2414-01 — 9a Push Retainer
• 321525G01 — 7 Base Cover
• 2A3756-01 — 18 Condenser
• 4A0808L02 — 2 Gasket L=550
• 429006-03 — 27 Thermistor
• 7730I3896 — 33 Silicone Hose L=140
• 427443-04 — Hose Clamp 16.5 mm
• 4A2974-01 — 7 Pump Gasket
• 3A2638A02 — 1 Pump Motor Assembly
• 4A3624-01 — 16 Float Switch
• 4A1234-01 — 24 Overflow Pipe O-Ring
• 4A5216G04 — 10 Water Supply Pipe
• 7P22-0416 — 35a Flat Head T2 Screw
• 430722-03 — 23 Overflow Pipe
• 208586-01 — 14 Spray Guide
• 321002-01 — 22 Overflow Cap
• 212088-01 — 31 Cube Guide
• 4A1176-06 — 12 Inlet Water Valve
• 433468-01 — 27 Drain Hose
• 2A0079-01 — 15 Water Supply Tube
• 465627-01 — 4 Mechanical Seal
• 426799-01 — 17 Float Switch Connector
• 427443-05 — Hose Clamp 18 mm
• 3A2988-01 — 3 Pump Flange
• 211409-02 — 8 Pump Housing
• 7716-2025 — 29 Vinyl Hose L=250
• 4A0176-01 — 25 Spray Tube Plug
• 417082-01 — 5 Impeller
• 7730I3812 — 32 Silicone Hose L=140
• 433705-01 — 19 Drain Valve Seat
• 433466-01 — 26 Suction Hose
• 4A0648-01 — 6 Pin
• 415949G12 — 34a Thumbscrew
• 3A0875-01 — 20 Drain Valve Spring
• 3A3500-01 — 34 Deflector A
• 4A1551-03 — 28 Rubber Hose L=353
• 435269-01 — 35 Collar
• 321001-01 — 18 Drain Valve Housing
• 1A0260-02 — 13 Spray Tube
• 4A0768G04 — 10 Water Supply Pipe
• 4A5251-06 — 12 Inlet Water Valve
• 427443-10 — Hose Clamp 23 mm
• 2A2758-01 — 2 Pump Motor
• 413854-03 — 11 Rubber Gasket
• 427443-03 — Hose Clamp 25 mm
• 211408-01 — 9 Pump Motor Bracket
• 4A3871-01 — 8a Screw
• 3A4788-01 — 1 Start Capacitor 130-156MFD
• 2A1410-01 — 7 Control Board 'E' Board
• 2A3792-01 — 'G' Board
• 4A0336-03 — 7a Control Board Support
• 4A2879-01 — 9 Bin Control
• 4A3140-01 — Compressor Relay
• 3A0172-01 — 6 Control Transformer
• 4A2200G04 — 12 Mechanical Bin Control Wire
• 4A2128-05 — 13 Fan Motor Capacitor 2.5MFD
• 4A2128-03 — 5 Pump Motor Capacitor 5.5MFD
• 4A2436-01 — 8 Control Switch
• 4A0892-01 — 10 Fuse Holder
• 4A1107-15 — 3 Start Relay
• 4A5443-01 — 10 Fuse Holder
• 3A2005-01 — 2 Run Capacitor 20MFD
• 4A0893-07 — 11 Fuse AGC-10A
• 428393-01 — 4 Magnetic Contactor
• 4A0526-01 — 1 Penguin Label-HA-R
• 426177-01 — 3 Air Filter Label
• 4A0363-01 — 4 Universal Brace
• 7B02-0512 — 4a Hex Head Bolt 5x12, SS
• 4A0560-01 — 2 Hoshizaki Emblem
