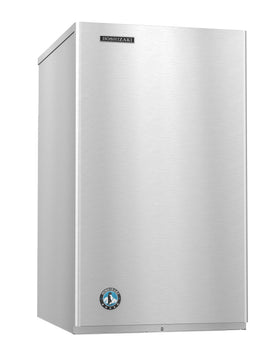

KM-650MWH

Parts associated with KM-650MWH

• 415949G10 — 12a Thumbscrew
• 2A2117G02 — 3 Right Side Panel
• 4A1482-01 — 19 Thermostatic Expansion
• 441569-02 — 26 Strainer
• 3A6040-01 — Mechanical Bin Switch
• 4A2666-01 — 30 Drier
• 4A3959-01 — 29 Fan Blade
• 427430-01 — 25 Thermistor Holder
• 4A1477-01 — 15 Voltage Tap Switch
• 2A2062G01 — 9 Air Filter
• 3A2371-01 — 6 Control Box Cover
• 3A0944-01 — 20 Thermostatic Expansion
• 4A3277-01 — 23 Valve Coil
• 2A5448G02 — 27 Heat Exchanger
• 2A3853-01 — 17 Condenser
• 3A3903-01 — 12 Bulb Holder
• 4A0817-01 — 14 Main Transformer
• 4A3978-01 — 22 Hot Gas Valve Body
• 2A3850G01 — 27 Heat Exchanger
• 4A5079-01 — RST61C1E-CAV
• 3A0107-01 — 21 Thermostatic Expansion
• 4A4072-01 — 16 Compressor RS55C2E-CAV
• 215731G02 — 4 Front Insulation
• 2A2243G01 — 2 Front Panel
• 2A4393G01 — 13 Mechanical Bin Control
• 106396G01 — 18 Evaporator
• 433441-07 — 31 High-Pressure Switch
• 435487-01 — 11 Strap
• 215730G01 — 5 Top Insulation
• 1A0547-01 — 8 Louver
• 4A3158-01 — 28 Fan Motor
• 2A5870-01 — 17 Condenser
• 463180-04 — 31 High-Pressure Switch
• 3A3878A01 — 1 Top Panel
• 4A2414-01 — 8a Push Retainer
• 433410-01 — 7 Junction Box Cover
• 4A0808L02 — 10 Gasket L=554 mm
• 429006-03 — 24 Thermistor
• 463180-05 — 28 High-Pressure Switch
• 2A2253G01 — 2 Front Panel
• 3A5997G01 — 2 Front Panel
• 4A0911-07 — 16 Water Regulator
• 2A3850G02 — 27 Heat Exchanger
• 2A2359G02 — 15 Condenser HS-0161
• 433441-05 — 28 High-Pressure Switch
• 3A7322-01 — 15 Condenser HS-0161
• 2A3850G03 — 26 Heat Exchanger
• 4A5091-01 — 28 Crankcase Heater
• 437652-01 — 16 Receiver Tank
• 4A5397-02 — 28 Crankcase Heater
• 4A0177-01 — 30 Distributor A (Tee)
• 3U0111-03 — 11 Inlet Water Valve
• 7730I3896 — 38 Silicone Hose L=140 mm
• 430722-01 — 21 Overflow Pipe
• 3A2638A03 — 1 Pump Motor Assembly PA0613
• 4A2974-01 — 4 Pump Gasket
• 211409-01 — 7 Pump Housing
• 4A3624-01 — 14 Float Switch
• 4A1234-01 — 22 O-Ring
• 439236-01 — 40 Rubber Ring
• 4A5216G04 — 9 Water Supply Pipe
• 433522-01 — 5 Impeller
• 432426-01 — 31 Distributor (Tee)
• 215383-01 — 23 Cleaning Valve Handle
• 208586-01 — 13 Spray Guide (A)
• 321002-01 — 20 Overflow Cap
• 4A2546-01 — 24 Cleaning Valve Microswitch
• 325826-01 — 26 Cleaning Valve Male Adaptor
• 4A1551-01 — 34 Rubber Hose (A)
• 212088-01 — 36 Cube Guide
• 433468-01 — 33 Drain Hose
• 3U0111-02 — 11 Inlet Water Valve
• 426799-01 — 15 Float Switch Connector
• 465627-01 — 2 Mechanical Seal
• 2A0079-01 — 32 Water Supply Tube
• 427443-05 — Hose Clamp 18 mm
• 427443-06 — Hose Clamp 20 mm
• 3A2988-01 — 3 Pump Flange
• 439293-01 — 25 Cleaning Valve Ball Valve
• 7716-2025 — 29 Vinyl Hose L=110 mm
• 4A0176-01 — 41 Plug
• 7730I3812 — 37 Silicone Hose L=140 mm
• 433705-01 — 17 Drain Valve Seat
• 433466-01 — 28 Suction Hose
• 4A0648-01 — 6 Pin
• 321001-01 — 16 Drain Valve Housing
• 322110-01 — 18 Drain Valve Spring
• 1A0260-02 — 12 Spray Tube
• 4A1551-02 — 39 Rubber Hose (B)
• 413854-03 — 10 Rubber Gasket
• 427443-03 — Hose Clamp 25 mm
• 211408-01 — 8 Pump Motor Bracket
• 4A3871-01 — 7a Screw
• 3A1414-01 — 72-86MFD
• 4A3449-01 — 10 Fuse Holder
• 4A2200G04 — 13 Bin Control Wire Harness L=90 mm
• 4A1107-19 — 2 Start/Relay
• 3A0076-19 — 1 Start Capacitor 175-216MFD
• 4A3140-01 — Compressor Relay KM-650MAH
• 4A5096-01 — KM-650MRH
• 443192-02 — 7 Fan Motor Capacitor KM-650MAH
• 4A5443-01 — 10 Fuse Holder
• 2A1410-01 — 9 'E' Control Board
• 443119-01 — 3 Toggle Switch
• 3A0172-01 — 4 Control Transformer
• 3A2005-06 — 8 Run Capacitor 25MFD
• 3A2005-16 — 17.5MFD
• 406132-07 — 14 Relay KM-650MAH
• 4A0893-07 — 11 Fuse AGC10A
• 4A2879-01 — 12 Bin Control Thermostat
• 443192-03 — 6 Pump Motor Capacitor 5.5MFD
• 4A1107-12 — 2 Start/Relay
• 4A0336-03 — 9a Control Board Support
• 2A3792-01 — 'G' Control Board
• 428393-01 — 5 Magnetic Contactor
• 4A0560-01 — 1 Hoshizaki Emblem Label
• 4A0363-01 — 3 Universal Brace
• 7B02-0512 — 3a Hex Bolt 5×12, SS
• 4A0526-01 — 2 Penguin Label
