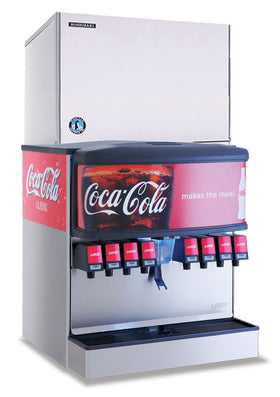

KMD-450MAH
Find Parts for KMD-450MAH
Browse OEM replacement parts for the KMD-450MAH ice machine and use the parts diagram below to identify the correct component before ordering.
Parts associated with KMD-450MAH
- 2A4144G01 — 17 Evaporator
- 2A4137G01 — 3 Right Side Panel
- 441569-02 — 25 Strainer
- 427430-01 — 24 Thermistor Holder
- 2A4128G01 — 5 Air Filter
- 3A4394G01 — 6 Top Insulation
- 3A0944-01 — 19 Thermostatic Expansion Valve
- 4A3277-01 — 22 Valve Coil
- 3A4388-01 — 8 Control Box Cover
- 3A4861G01 — 10 Mechanical Bin Control
- P00027-01 — 23 Thermistor
- 4A3978-01 — 21 Hot Gas Valve Body
- 3A5570G01 — 7 Front Insulation
- 3A0107-01 — 20 Thermostatic Expansion Valve
- 453861-02 — 12 Reed Switch
- 1A1363-01 — 14 Condenser
- 4A1113-01 — 26 Drier
- 3A5196G01 — 2 Front Panel
- 3A4373G01 — 1 Top Panel
- 4A1414-01 — 18 Thermostatic Expansion Valve
- 415949G12 — 10a Thumbscrew
- 4A2128-08 — 16 Fan Motor Capacitor 6MFD
- 1A1329-01 — 4 Louver
- 458331-01 — 11 Magnet
- 4A4336-01 — 9 Water Valve Cover
- 4A4479-01 — 13 Compressor
- P02596-01 — 15 Fan Motor (includes blade)
- 463180-04 — 28 High-Pressure Switch
- 2A5259G01 — 27 Heat Exchanger
- 463180-05 — 25 High-Pressure Switch
- 2A4172G01 — 12 Condenser HS-0201
- 4A0911-06 — 13 Water Regulator
- 2A4173G01 — 3 Right Side Panel
- 4A1087-01 — 13a Male Connector
- 4A4338-01 — 7 Water Valve Cover
- 3U0111-03 — 7 Inlet Water Valve
- 7716-1216 — 16 Vinyl Hose L=100 mm
- 309246-01 — 22 Drain Plug
- 4A3624-04 — 12 Float Switch
- 3A4370-01 — 21 Bypass Hose (Tee)
- 327757-01 — 15 Float Switch Bracket
- 4A4250G01 — 4 Water Supply Pipe
- 4A3722-03 — 18 Drain Valve
- 4A4239-01 — 25 Tank Separator
- 2A4133-01 — 9 Spray Tube
- 4A4259-01 — 1 Pump Motor
- 427443-03 — Hose Clamp 25 mm
- 427443-05 — Hose Clamp 18 mm
- 4A4245-01 — 26 Tank Drain Hose
- 3A8316G01 — 24 Tank
- 427443-06 — Hose Clamp 20 mm
- 7716-2025 — 3 Pump Hose L=225 mm
- 4A4243-01 — 19 Drain Hose (A)
- 4A0176-01 — 10 Plug
- 4A0658L01 — 27 Vinyl Hose 25 mm
- 3A4369-01 — 13 Evaporator Pipe
- 3A4387G01 — 14 Splash Curtain
- 3A4366-01 — 8 Water Valve Hose (Tee)
- 4A4251G01 — 2 Pump Motor Bracket
- 2A4282-04 — 11 Spray Guide
- 7P32-0412 — 12a T2 Screw
- 4A3722-01 — 17 Wash Valve
- 1A1336-01 — 20 Cube Guide
- 413854-03 — 5 Rubber Gasket
- 2A4132-01 — 6 Water Supply Tube
- 7716-1519 — 28 Vinyl Hose
- 4A1107-11 — 4 Start Relay
- 3A4673G01 — 13 Wire Harness
- 443119-01 — 9 Control Switch
- 4A0336-03 — 1a Control Board Support
- 4A3449-01 — 6 Fuse Holder
- 4A3140-01 — Compressor Relay
- 4A2128-05 — 11 Pump Motor Capacitor 2.5MFD
- 428393-01 — 5 Magnetic Contactor
- 4A5443-01 — 6 Fuse Holder
- 3A0076-20 — 2 Start Capacitor 243-292MFD
- 3A4395-01 — 8 Control Transformer
- 4A0985-01 — 10 Service Switch
- 3A2005-12 — 3 Run Capacitor 35MFD
- 4A4950G01 — 12 Wire Harness (A)
- 4A0893-07 — 7 Fuse AGC-10A
- P00013-02 — 1 'H' Control Board
- 456246-02 — 2 Label-Penguin-HA-L
- 426177-01 — 3 Label-Air Filter KMD-450MAH
- 4A0363-01 — 4 Universal Brace
- 7B0130512 — 4a Hex Bolt Assembly 5×12
- 4A0560-01 — 1 Emblem
Shop KMD-450MAH Parts
About KMD-450MAH Ice Machine Parts
We carry OEM parts for the KMD-450MAH ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
