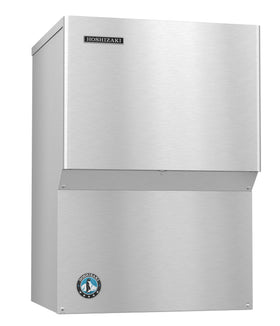

KMS-1122MLH

Parts associated with KMS-1122MLH

• 415949G10 — 10a Thumbscrew
• 3A7231-01 — 8 Control Box Cover
• 443461-02 — 26 Clamp
• 441569-02 — 27 Strainer
• 1A2807A01 — 14 Evaporator Assembly
• 427430-01 — 24 Thermistor Holder
• 3A0944-01 — 16 Thermostatic Expansion Valve
• 4A3277-01 — 19 Valve Coil
• 1A2539-01 — 3 Apron Panel
• 3A7154G01 — 7 Side Insulation Panel
• 3A3903-01 — 12 Bin Control Bulb Holder
• 4A3978-01 — 17 Hot Gas Valve Body
• 1A2536-01 — 1 Top Panel
• 1A2538-01 — 5 Right Side Panel
• 3A7183G01 — 6 Top Insulation Panel
• 4A2054-01 — 22 Check Valve
• 3A2642-01 — 10 Bin Control Cover
• 3A0107-01 — 25 Thermostatic Expansion Valve
• 434072-01 — 21 Liquid Line Coupling
• 469256G01 — 13 Wire Harness
• 3A7276-01 — 11 Bin Control Bracket
• 4A4008-01 — 15 Thermostatic Expansion Valve
• 4A3826-01 — 20 Suction Line Coupling
• 1A2537-01 — 4 Left Side Panel
• 1A2535-01 — 2 Front Panel
• 4A3276-01 — 18 Liquid Line Valve Body
• 4A3068-01 — 9 Bin Control Insulation
• 4A3754-01 — 28 Heat Exchanger
• 4A2663-01 — 29 Drier
• 429006-03 — 23 Thermistor
• 3A7150-01 — 17 Cleaning Hose A
• 3A7228G01 — 2 Pump Motor Bracket
• 309246-01 — 23 Drain Plug
• 4A2017-05 — Hose Clamp 17 to 21mm
• 3A7130G01 — 3 Water Supply Pipe
• 415949G08 — 2a Thumbscrew
• 258313P03 — 9 Spray Guide
• 1A2553-01 — 11 Cube Guide
• 4A5530-01 — 6 Cleaning Valve/Drain Valve
• 4A5509-02 — 12 Float Switch
• 4A4259-01 — 1 Pump Motor
• 427443-03 — Hose Clamp 25 mm
• 427443-05 — Hose Clamp 18 mm
• 1A2554-01 — 7 Spray Tube
• 3A7180-01 — 26 Splash Curtain
• 4A0176-01 — 8 Spray Tube Plug
• 7730I3812 — 25 Silicone Hose L=225
• 325869-02 — 22 Drain Hose
• 4A5536-01 — 13 Float Switch Stop
• 3A7151-01 — 18 Cleaning Hose B
• 3A7149-01 — 20 Drain Hose B
• 427443-08 — Hose Clamp 27 mm
• 4A3765-02 — 15 Pipe E
• 323978-01 — 14 Overflow Cap
• 3A7147-01 — 16 Pump Hose
• 413854-03 — 4 Rubber Gasket
• 4A5251-08 — 5 Inlet Water Valve
• 1A2555-01 — 10 Water Supply Tube
• 3A7148-01 — 19 Drain Hose A
• 4A5529-01 — 21 Barb Coupling
• 443119-01 — 3 Control Switch
• 4A4883G01 — 2 K4 Jumper
• 4A0336-03 — 1a Control Board Support
• 4A2128-05 — 5 Pump Motor Capacitor 2.5MFD
• 3A0172-01 — 7 Control Transformer
• 4A0985-01 — 4 Service Switch
• 4A5443-01 — 9 Fuse Holder
• 2A3792-01 — 1 'G' Control Board
• 406132-07 — 6 X10, X11, X12 Relay
• 4A0893-07 — 10 Fuse 10A, 250VAC
• 4A2879-01 — 8 Bin Control Thermostat
• 7P11I1234 — 3b Self-Tapping Bolt
• 4A5544-01 — 2' Offset Brace
• 4A0526-01 — 2 Penguin Label
• 4A0363-01 — 3 Universal Brace
• 7B02-0512 — 3a Hex Head Bolt 5×12, SS
• 4A0560-01 — 1 Hoshizaki Emblem Label
