MDT3
Find Parts for MDT3
Browse OEM replacement parts for the MDT3 ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
MDT3
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with MDT3
- 02-0417-21 — Lower Bearing
- 02-1501-00 — Bearing
- 02-1503-00 — Grease seal
- 02-1505-00 — O-ring
- 02-1801-02 — Strap
- 02-2438-01 — 1st gear & 2nd pinion
- 02-2439-01 — 2nd gear & third pinion
- 02-2444-01 — Output gear
- 02-2445-01 — Output shaft
- 02-2814-07 — Clamp
- 02-2814-08 — Clamp
- 02-2814-10 — Hose clamp
- 02-3033-01 — Hub Assembly
- 02-3237-01 — Bin top
- 02-3238-01 — Bushing
- 02-3239-01 — Nut
- 02-3241-01 — Shaft
- 02-3266-03 — Plunger/seat
- 02-3302-02 — Grill
- 02-3319-01 — Drier 7b
- 02-3371-01 — Reservoir Assy
- 02-3371-02 — Float and arm
- 02-3402-32 — Sink - grey
- 02-3878-31 — Splash panel - grey
- 02-3944-01 — Spout
- 02-3969-20 — Grease seal
- 02-4200-01 — Preformed tube
- 02-4398-21 — ···························································· Page
- 02-4399-21 — or 02-4399-24 or 02-4398-21 ···························································· Page
- 02-4399-24 — or 02-4398-21 ···························································· Page
- 02-4404-02 — Threaded cap - grey
- 02-4535-01 — Top bearing, w/thrust washer - for updated units*
- 02-4575-21 — Breaker kit, includes items 1, 3, 4a, 4b

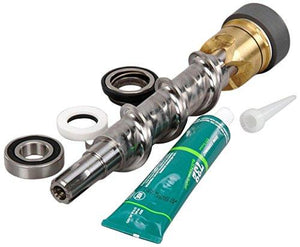

- 02-4578-02 — Auger and bearing kit
- 02-4599-21 — Water Seal
- 03-0727-10 — Thumbscrew
- 03-0758-00 — Screw
- 03-0774-11 — Roll pin
- 03-1394-00 — Pal Nut
- 03-1403-15 — Screw
- 03-1403-19 — Screw
- 03-1403-46 — Screw
- 03-1403-77 — Screw
- 03-1405-38 — Cap Screw (3)
- 03-1405-40 — Screw
- 03-1405-45 — Screw DETAIL
- 03-1406-04 — Nut
- 03-1407-02 — Washer
- 03-1407-03 — Washer
- 03-1408-02 — Washer
- 03-1408-04 — Washer
- 03-1408-08 — Washer
- 03-1408-21 — Washer
- 03-1408-36 — Washer
- 03-1408-38 — Washer
- 03-1408-39 — Washer
- 03-1408-40 — Washer shim
- 03-1408-41 — Washer
- 03-1409-22 — Fiber Washer
- 03-1410-04 — Washer (3)
- 03-1417-07 — Washer
- 03-1418-30 — Machine screw
- 03-1419-17 — Screw
- 03-1420-01 — Cap screw
- 03-1505-00 — Gasket
- 03-1515-03 — Retaining ring
- 03-1531-01 — Screw
- 03-1602-01 — Woodruff Key
- 03-1638-03 — Screw
- 03-1645-01 — Hex Cap Screw
- 03-3804-01 — Screw receptacle
- 08-0595-01 — Adapter
- 12-1213-10 — Snap bushing
- 12-1377-00 — Switch
- 12-1434-04 — Water valve
- 12-1434-05 — Water valve
- 12-1610-01 — Motor & gears
- 12-1610-06 — Motor & gears
- 12-2059-01 — Switch
- 12-2391-01 — Lock, Gov’t units only
- 12-2469-02 — Contactor, for
- 12-2469-03 — Contactor, 115/60/1
- 12-2499-01 — Stand off
- 12-2501-01 — Touch Free disable switch
- 12-2551-20 — Touch free sensor
- 12-2843-21 — Circuit board for 115/60/1
- 12-2843-26 — Circuit board for 220/50/1
- 12-3042-01 — Wire harness for
- 12-3042-02 — Wire harness for
- 13-0228-01 — Insulation for spout
- 13-0566-01 — Bottom gasket - complete
- 13-0617-16 — O-Ring (inside)
- 13-0617-37 — O-Ring, outside of breaker 4, 4a, 4b
- 13-0639-00 — Grommet
- 13-0674-06 — Tube (to evap.)
- 13-0674-07 — Tube, order
- 13-0674-09 — Tube, overflow to
- 13-0866-01 — Grommet
- 13-0895-01 — Inlet water line
- 13-0941-01 — Water shed
- 13-0947-01 — Gasket
- 15-0803-01 — Emblem, Touch-Free
- 15-0809-01 — Emblem, Scotsman
- 16-0670-01 — Tee
- 16-0832-02 — Stem cap
- 16-0832-03 — Core cap
- 16-0832-21 — Access valve
- 16-0869-01 — Barbed adapter
- 16-0871-01 — Brass insert
- 16-1138-01 — Seat for 1/4' tube
- 16-1139-01 — Core
- 16-1140-01 — Cap
- 16-1155-01 — NPT to tube fitting
- 17-2830-01 — Decal
- 17-2831-01 — Water decal
- 18-0108-41 — Sleeve
- 18-0422-00 — Fan motor bracket
- 18-4700-28 — Grommet
- 18-8741-22 — Overload for
- 18-8741-24 — Start capacitor for
- 18-8741-27 — Overload for
- 18-8741-29 — Start capacitor for
- 18-8743-01 — Fan blade for
- 18-8846-01 — Condenser
- 18-8851-01 — Fan blade
- 18-8853-22 — Overload for
- 18-8853-27 — Overload for
- 18-8858-01 — Fan blade for
- 19-0569-03 — to the o-ring inside the breaker.
- 19-0662-02 — Top bearing grease
Shop MDT3 Parts
About MDT3 Ice Machine Parts
We carry OEM parts for the MDT3 ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
