MFE400
Find Parts for MFE400
Browse OEM replacement parts for the MFE400 ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
MFE400
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with MFE400
- 02-0179-03 — Hose clamp
- 02-0417-21 — Lower Bearing
- 02-0535-01 — Hose clamp
- 02-0694-00 — Clamp
- 02-1501-00 — Bearing
- 02-1503-00 — Grease seal
- 02-1505-00 — O-ring**
- 02-2217-01 — Reservoir (includes 1a)
- 02-2217-02 — Float valve
- 02-2438-01 — First gear & 2nd pinion
- 02-2439-01 — 2nd gear & 3rd pinion
- 02-2444-01 — Output gear**
- 02-2445-01 — Output shaft**
- 02-3200-01 — Insulation half
- 02-3200-02 — Insulation half
- 02-3207-01 — Upper spacer
- 02-3207-02 — Lower spacer
- 02-3319-01 — Drier
- 02-3969-20 — Grease seal
- 02-4398-21 — Gear and case kit
- 02-4399-21 — 02-4398-21 includes
- 02-4404-02 — Threaded cap - grey
- 02-4535-01 — Top bearing, w/thrust washer - for updated units*
- 02-4575-21 — Breaker kit, includes items 1, 3, 4a, 4b

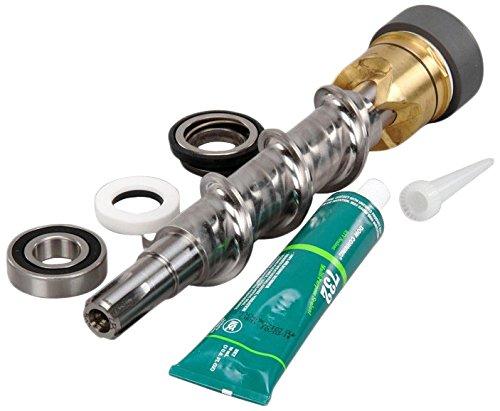

- 02-4578-02 — Auger and bearing kit
- 02-4599-21 — Water Seal
- 02-4600-02 — Auger - for updated units*
- 03-0271-00 — Speed clip for
- 03-0758-00 — Screw
- 03-0774-11 — Roll pin**
- 03-1394-00 — Pal nut
- 03-1403-02 — Mounting Screw
- 03-1403-09 — Screw
- 03-1403-46 — Screw
- 03-1403-77 — Screw
- 03-1404-08 — Screw * Includes drier.
- 03-1404-09 — Panel Screw
- 03-1405-38 — Cap Screw (3)
- 03-1405-40 — Screw
- 03-1407-03 — Washer
- 03-1407-17 — Screw
- 03-1408-04 — Washer**
- 03-1408-08 — Washer
- 03-1408-21 — Washer**
- 03-1408-29 — Washer
- 03-1408-36 — Washer
- 03-1408-38 — Washer
- 03-1408-39 — Washer
- 03-1408-40 — Washer shim
- 03-1408-41 — Washer
- 03-1410-04 — Washer (3)
- 03-1417-07 — Washer
- 03-1417-12 — Lockwasher
- 03-1419-09 — Flat head screw
- 03-1420-01 — Cap screw
- 03-1423-06 — Speed nut 15-0808-01 Emblem, gray
- 03-1505-00 — Gasket
- 03-1507-00 — Speed nut
- 03-1515-03 — Retaining ring
- 03-1587-02 — Wing nut
- 03-1602-01 — Woodruff Key**
- 03-1645-01 — Screw
- 05-0582-01 — Ice chute
- 08-0595-01 — Adapter
- 11-0198-02 — Water reg. valve
- 11-0296-00 — Water pressure cut out
- 11-0354-20 — Bin Thermostat
- 11-0388-22 — High pressure control, (w.c. only)
- 11-0402-21 — Auger Delay Control
- 12-0426-01 — Toggle switch
- 12-0813-04 — Terminal board
- 12-1018-01 — Microswitch
- 12-1213-12 — Snap Bushing
- 12-2059-01 — Switch
- 13-0079-03 — Overflow hose, 28' req.
- 13-0557-00 — Grommet
- 13-0617-16 — O-Ring (inside)
- 13-0617-37 — O-Ring, outside of breaker
- 13-0674-09 — Evaporator water inlet tube, 5' req.
- 13-0848-01 — Insulation (11' req.)
- 13-0895-01 — Inlet tubing, per foot. Order 3.
- 13-0902-01 — Gasket, 30' req.
- 13-0941-01 — Water shed, not shown
- 13-0947-01 — Gasket for 02-4399
- 15-0718-01 — Emblem, for sndlwd
- 15-0808-01 — Emblem, gray
- 16-0832-02 — Stem cap
- 16-0832-03 — Core cap
- 16-0832-20 — Access valve
- 16-0835-01 — Inlet fitting
- 16-1046-01 — Water line to switch connector
- 18-0108-40 — Sleeve
- 18-0422-00 — Fan motor bracket
- 18-3305-25 — A series water cooled condenser
- 18-3309-01 — Fan blade 18-8741-23
- 18-4700-28 — Grommet
- 18-8741-22 — Overload for
- 18-8741-27 — Overload for
- 18-8846-01 — Air cooled condenser
- 18-8871-21 — B series water cooled condenser
- 19-0662-02 — Top bearing grease
Shop MFE400 Parts
About MFE400 Ice Machine Parts
We carry OEM parts for the MFE400 ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
