QF0406A
Parts associated with QF0406A
- 000005624 — Control Board
- 2511493 — Amp Fuse
- 2301513 — Toggle Switch
- 2001113 — Wiring Harness - Toggle Switch
- 2006589 — Contactor - 115V/60 Hz/1 Ph
- 2006599 — Contactor - 230V/50-60 Hz/1 Ph
- 000000945 — Gearmotor - Run Capacitor - 115-230V/50-60 Hz/1 Ph
- 2001283 — Wiring Harness Neutral
- 000000492 — Wiring Harness Main
- 6046601 — Control Box
- 6046611 — Control Box Cover
- 6024951 — Capacitor Bracket
- 4302253 — Control Board Mounting Supports
- 5202169 — Screw - #10-24 x 0.50' Ground
- 3000583 — Evaporator - Before Serial Number 110638713
- 000000493 — Evaporator - After Serial Number 110638713
- 7601063 — Bin Level Sensor
- 4003733 — Ice Diverter
- 5000543 — O-Ring
- 4004133 — Drain Tubing
- 4004203 — Reservoir Overflow Tubing
- 6043081 — Outlet Screen
- 4003053 — Water Reservoir
- 5000243 — Quick Disconnect Fitting
- 2000443 — Water Float Valve Body
- 2000453 — Water Valve - 115V/60 Hz/1 Ph Coil Only
- 2000463 — Water Valve - 208-230V/50-60 Hz/1 Ph Coil Only
- 5000233 — Water Inlet Fitting
- 7600693 — Water Level Probe
- 4003093 — Water Reservoir Cover
- 5305123 — Thumbscrew SS - #8-32 x 0.44'
- 5650649 — Hose Clamp - 0.759'/0.848' ID
- 5650709 — Snap Clamp - 0.799'/0.899' ID
- 5000493 — Hose Clamp
- 6058621 — Support, Water Reservoir
- 6058631 — Straps, Water Reservoir
- 7601343 — Compressor - Danfoss - 115V/60 Hz/1 Ph
- 8251033 — Start Relay - 115V/60 Hz/1 Ph
- 8251023 — Start Capacitor - 115V/60 Hz/1 Ph
- 7601353 — Compressor - Danfoss - 208-230V/50-60 Hz/1 Ph
- 8251083 — Start Relay/Overload Assembly
- 8504433 — Start Capacitor - 208-230V/50-60 Hz/1 Ph
- 7601323 — Compressor - Danfoss - 115V/60 Hz/1 Ph
- 2002043 — Current Relay with Overload - 115V/60 Hz/1 Ph
- 2002033 — Start Capacitor - 115V/60 Hz/1 Ph
- 7601333 — Compressor - Danfoss - 230V/50 Hz/1 Ph
- 2004873 — Current Relay with Overload - 230V/50 Hz/1 Ph
- 2004863 — Start Capacitor - 230V/50 Hz/1 Ph
- 000001767 — Water Dump Valve - 115V/60 Hz
- 000001768 — Water Dump Valve - 208-230V/50-60 Hz
- 7601093 — Expansion Valve
- 4000403 — Valve Insulation Boot - Body
- 2001293 — Thermistor
- 5650773 — Worm Drive Clamp
- 2001243 — High Pressure Cut-out Control
- 8310163 — Manifold Strainer
- 8930259 — Drier
- 4000923 — Valve Insulation Boot - Bulb
- 3000833 — Strap - Expansion Valve Bulb - 0.375'
- 5650529 — Clamp - Expansion Valve Bulb
- 000008892 — Receiver
- 8373253 — Access Valve
- 5004203 — Mounting - Grommet
- 5000649 — Mounting - Screw
- 5000629 — Mounting - Sleeve
- 5000659 — Mounting - Washer
- 5202069 — Screw - #10-24 x 0.50' HEX
- 8706083 — Female Wing Adapter - 0.50'
- 8706093 — Female Wing Adapter - 0.375'
- 1360961 — Male Connector
- 4004213 — Tubing Drain Line
- 8390053 — Union Connector
- 4420291 — Vinyl Tube - 0.25' OD
- 6039091 — Water Inlet Tubing Insulation
- 2502283 — Strain Relief
- 2033013 — Power Cord - 115V
- 2033023 — Power Cord - 230V/50-60 Hz
- 7601743 — Strap for Reservoir Bracket
- 000003060 — Coupler
- 000001742 — Evaporator Foundation
- 3001293 — Mounting Plate
- 2000783 — Gearmotor - 115V/60 Hz/1 Ph
- 2001173 — Gearmotor - 230V/50 Hz/1 Ph
- 2000433 — Gearmotor Speed Sensor
- 000000490 — Wiring Harness - Gearmotor - 115V
- 000000489 — Wiring Harness - Gearmotor - 230V
- 5000273 — Bolt
- 5000269 — Allen Head - Screw
- 5573049 — Flatwasher
- 5545119 — Mounting - Lockwasher
- 5000639 — Mounting Plate - Screw
- 5000293 — Screw
- 8851323 — Air Condenser
- 2416253 — Fan Blade

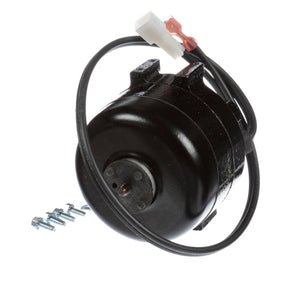

- 000000518 — Fan Motor - 115V/60 Hz /1 Ph
- 000000519 — Fan Motor - 208-230V/50-60 Hz
- 7629143 — Air Filter
- 4004233 — Fan Shroud
- 3001263 — Condenser Shroud
- 5202329 — Screw - #10-24 x 0.25' PH
- 5025599 — Screw - #8-36 x 0.375'
- 5475079 — Speed Nut - 0.25' x 20
- 6047461 — Fan Motor Bracket
- 7629153 — Front Panel Assembly
- 040001716 — Bin Door & Door Frame Assembly
- 3302603 — Ice Scoop
- 6047841 — Back Panel - Upper
- 6047181 — Back Panel - Lower
- 7601103 — Evaporator Access Panel
- 7601113 — Cabinet Assembly
- 5202239 — Front Cover Screw
