QF0806A
Parts associated with QF0806A
- 000005624 — Control Board
- 2511493 — Amp Fuse
- 2301513 — Toggle Switch
- 2000663 — Wiring Harness - Toggle Switch
- 2006569 — Contactor - 115V/60 Hz/1 Ph
- 2006579 — Contactor - 230V/50-60 Hz/1 Ph
- 2010143 — Run Capacitor - 115V/60 Hz/1 Ph
- 000000026 — Run Capacitor - 230V/50-60 Hz/1 Ph
- 8503143 — Start Capacitor - 115V/60 Hz/1 Ph
- 2001043 — Start Capacitor - 230V/50 Hz/1 Ph
- 000006455 — Start Capacitor 60 Hz/1 Ph
- 2007623 — Start Potential Relay - 115V/60 Hz/1 Ph
- 2007633 — Start Potential Relay - 230V/50-60 Hz/1 Ph
- 2007643 — Start Potential Relay - 230V/60 Hz/1 Ph
- 2006589 — Contactor - 115V/60 Hz/1 Ph
- 2006599 — Contactor - 230V/50-60 Hz/1 Ph
- 2009223 — Capacitor - 115V/60 Hz/1 Ph
- 2009383 — Capacitor - 230V/50 Hz/1 Ph
- 2000373 — Compressor Wiring Harness
- 6043781 — Control Box
- 6043791 — Control Box Cover
- 6021601 — Capacitor Mounting Strap
- 4302253 — Control Board Mounting Supports
- 5202169 — Screw - #10-24 x 0.50' Ground
- 2006143 — Terminal Block - 50 Hz - 3 Pole
- 3000023 — Evaporator - Flake Ice
- 3000033 — Evaporator - Chiplet Ice
- 3000533 — Insulation
- 4000393 — Vinyl Adapter
- 7600683 — Bin Level Sensor
- 4000183 — Ice Chute
- 3000853 — Insulation
- 7600693 — Water Level Probe
- 3712031 — Hairpin Clip
- 5000313 — Clevis Pin
- 5000303 — Plug
- 7600703 — Water Reservoir
- 2000443 — Water Float Valve Body
- 2000453 — Water Valve - 115V/60 Hz/1 Ph Coil Only
- 2000463 — Water Valve - 208-230V/50-60 Hz/1 Ph Coil Only
- 4003173 — Water Valve Foam Seal
- 5650863 — Wing Nut
- 5650853 — Receptacle
- 4000353 — Water Reservoir Cover
- 7600713 — Compressor - Copeland - 115V/60 Hz/1 Ph
- 7600733 — Overload for Compressor
- 7600723 — Compressor - Copeland - 230V/50 Hz/1 Ph
- 7600743 — Overload for Compressor
- 7601143 — Compressor - Copeland - 230V/60 Hz/1 Ph
- 8200003 — Overload for Compressor
- 000001767 — Water Dump Valve - 115V/60 Hz
- 000001768 — Water Dump Valve - 208-230V/50-60 Hz
- 7600753 — Expansion Valve
- 4000573 — Expansion Valve Body Insulation Boot
- 2001243 — High Pressure Cut-out Control
- 2001293 — Thermistor
- 8310153 — Manifold Strainer - 3 Hole
- 8250963 — Manifold Strainer - 4 Hole
- 8930259 — Drier
- 4007203 — Valve Insulation Boot - Bulb
- 3000503 — Strap - Expansion Valve Bulb - 0.5'
- 5650529 — Clamp - Expansion Valve Bulb
- 4040233 — Air Filter
- 8373263 — Refrigeration Service Valve Assembly
- 4000883 — Suction Line Insulation
- 8503069 — Mounting - Rubber Grommet
- 5035729 — Mounting - Bolt
- 8503949 — Mounting - Sleeve
- 5000293 — Screw
- 4000383 — Vinyl Drain Tubing
- 4000373 — Vinyl Drain Tubing
- 8706083 — Female Wing Adapter - 0.50'
- 5650649 — Hose Clamp - 0.759'/0.848' ID
- 8706093 — Female Wing Adapter - 0.375'
- 1360961 — Male Connector
- 5000233 — Water Inlet Fitting
- 5000243 — Quick Disconnect Fitting
- 5650699 — Air Filter Clip
- 4420291 — Vinyl Tube - 0.25' OD
- 6043601 — Water Inlet Tubing Insulation
- 5000533 — Elbow
- 000003060 — Coupler
- 2000433 — Gearmotor Speed Sensor

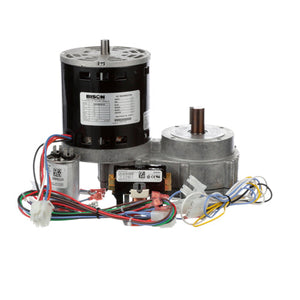

- 000000342 — Gearbox - 115V/60 Hz/1 Ph
- 000000343 — Gearbox - 230V/50 Hz/1 Ph
- 000000344 — Gearmotor - 230V/60 Hz/1 Ph
- 000001742 — Evaporator Foundation
- 4000583 — Evaporator Suction Line Outlet Insulation Boot
- 6040821 — Gearbox Assembly Mounting Bracket
- 5000269 — Screw
- 5573049 — Flatwasher
- 5545119 — Mounting - Lockwasher
- 5000273 — Bolt
- 8851243 — Air Condenser
- 2416203 — Fan Blade
- 2412929 — Fan Motor 115V/60 Hz/1 Ph
- 2412939 — Fan Motor 208-230V/50-60 Hz
- 2001263 — Fan Cycling Control - 200-250 psig
- 6041741 — Fan Shroud
- 5429559 — Mounting - Rubber Wellnut
- 5545109 — Lockwasher
- 5573059 — Mounting - Flatwasher
- 5033589 — Mounting - Screw
- 5504269 — Flatwasher #8
- 5025599 — Screw - #8-36 x 0.375'
- 3406623 — Fan Motor Bracket
- 8865323 — Water-Cooled Condenser
- 8372069 — Water Regulating Valve
- 8332023 — Water Coupling Connection - 0.375' NPT
- 7628323 — Front Panel Assembly
- 7628333 — Left Side Panel
- 4302993 — Top Cover
- 6023751 — Air Baffle
- 6041771 — Back Panel, Air
- 6043231 — Back Panel, Water
- 7628343 — Right Side Panel
- 6039841 — Top Rail
- 6038581 — Interior Support Panel
- 5119019 — Screw - #8 x 1.75'
- 5573389 — Washer - Nylon 0.171' x 0.38'
- 5648279 — Screw Retainer - Nylon #8
- 5473049 — Speed Nut - U Type 0.50' x 0.576'
- 5202099 — Screw - #10-24 x 0.50' PHIL
- 9202509 — Extruded Tape
- 6041391 — Support Angle
