QF2396N
Find Parts for QF2396N
Browse OEM replacement parts for the QF2396N ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
QF2396N
Buy Filters for this Model
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with QF2396N
- 000005624 — Control Board
- 2007819 — Shunt Resistor for Control Board
- 2511493 — Amp Fuse
- 2301513 — Toggle Switch
- 2000663 — Wiring Harness - Toggle Switch
- 6049981 — Control Box
- 6049271 — Control Box Cover
- 4302253 — Control Board Mounting Supports
- 5202169 — Screw - #10-24 x 0.50' Ground
- 2002213 — Wiring Harness - 115V/60 Hz/1 Ph
- 3001203 — Evaporator - Flake
- 3001663 — Evaporator Spout Retainer
- 4004673 — Water Reservoir Cover
- 5000303 — Plug
- 5000243 — Quick Disconnect Fitting
- 5000233 — Water Inlet Fitting
- 7600693 — Water Level Probe
- 2000443 — Water Float Valve Body
- 2000453 — Water Valve - 115V/60 Hz/1 Ph Coil Only
- 4003173 — Water Valve Foam Seal
- 4004663 — Water Reservoir
- 4004813 — Ice Chute Elbow
- 3001673 — Insulation
- 000000011 — Ice Chute
- 3001683 — Ice Chute Insulation
- 5000833 — O-Ring
- 7602103 — Expansion Valve
- 4000573 — Expansion Valve Body Insulation Boot
- 4000923 — Valve Insulation Boot - Bulb
- 3000813 — Copper Bulb Strap
- 5650523 — Expansion Valve Bulb Hose Clamp
- 8373169 — Receiver Service Valve
- 000001767 — Water Dump Valve - 115V/60 Hz
- 6050591 — Mounting Bracket
- 8930279 — Drier
- 7629593 — Receiver
- 8373159 — Magni-Check Valve - 0.5'
- 8373273 — Manual Shut-off Valve Liquid Line
- 8373283 — Manual Shut-off Valve Suction Line
- 7630021 — Solenoid Valve 115V
- 000005156 — Danfoss Solenoid Valve Coil Only - 115V/60 Hz
- 7602093 — Equalization Solenoid Valve

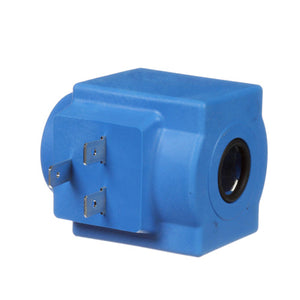

- 2007889 — Electrical Coil Only - 115V
- 6051261 — Gearmotor Shield
- 8706093 — Female Wing Adapter - 0.375'
- 1360961 — Male Connector
- 4420291 — Vinyl Tube - 0.25' OD
- 4004943 — Vinyl Drain Tubing
- 4005013 — Vinyl Drain Tubing
- 8706083 — Female Wing Adapter - 0.50'
- 5650649 — Hose Clamp - 0.759'/0.848' ID
- 6000561 — Receiver Mounting Bracket
- 6307213 — Receiver Mounting Strap
- 3001253 — Shaft Coupling
- 3001603 — Evaporator Foundation
- 7602123 — Gearmotor Speed Sensor
- 5037709 — Foundation Mounting Bolt
- 5000953 — Foundation Mounting Bolt
- 5545149 — Lockwasher
- 6050971 — Front Panel Assembly
- 7628593 — Left Side Panel
- 6045271 — Interior Support Panel
- 6039841 — Top Rail
- 4303313 — Top Cover
- 6049301 — Service Valve Panel
- 6049861 — Back Panel
- 7628603 — Right Side Panel
- 6049231 — Interior Front Top Support Channel
- 5119019 — Screw - #8 x 1.75'
- 5573389 — Washer - Nylon 0.171' x 0.38'
- 5648279 — Screw Retainer - Nylon #8
- 5473049 — Speed Nut - U Type 0.50' x 0.576'
- 5202099 — Screw - #10-24 x 0.50' PHIL
- 9202509 — Extruded Tape
- 7600563 — Compressor 208-230V/60 Hz/1 Ph
- 7600573 — Compressor 208-230V/60 Hz/3 Ph
- 8250549 — Suction Line Filter
- 8373253 — Access Valve
- 8851393 — Air-cooled Condenser
- 2000189 — Fan Motor - 208-230V/60 Hz/1-3 Ph
- 2000589 — Fan Motor - 230-415V/50 Hz/1-3 Ph
- 2416113 — Fan Blade
- 000001982 — Head Pressure Control Valve
- 2001243 — High Pressure Cut-out Control

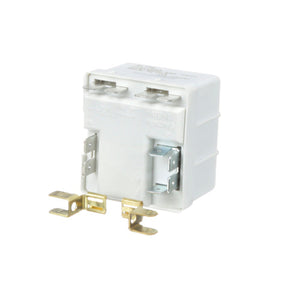

- 2007569 — Start Relay - 208-230V/60 Hz/1 Ph
- 2007869 — Contactor - 60 Hz/1 Ph
- 2007879 — Contactor - 60 Hz/3 Ph
- 000006455 — Start Capacitor 60 Hz/1 Ph
- 000000028 — Run Capacitor - 208-230V/50-60 Hz/1 Ph
- 000007280 — Suction Accumulator
- 6034491 — Fan Shroud
- 3006823 — Fan Motor Mounting Bracket
- 5033589 — Mounting - Screw
- 5545119 — Mounting - Lockwasher
- 5429529 — Mounting - Hexnut
- 5573059 — Mounting - Flatwasher
- 5429559 — Mounting - Rubber Wellnut
- 5202069 — Screw - #10-24 x 0.50' HEX
- 6034981 — Capacitor Mounting Bracket
- 6021601 — Capacitor Mounting Strap
- 2006143 — Terminal Block - 50 Hz - 3 Pole
- 000002252 — Bracket
- 6042261 — Condensing Unit Tube Shield
- 2007849 — Compressor Wiring Harness 1 Phase
- 2033109 — Compressor Wiring Harness 3 Phase
- 2007829 — Control Box Wiring Harness 1 Phase
- 2007839 — Control Box Wiring Harness 3 Phase
- 3406893 — Condenser Fan Guard
- 6040171 — Control Box Cover
- 6037071 — Control Box Panel
- 6037291 — Left Side Panel
- 6034751 — Cover Top
- 6034701 — Right Side Panel
Shop QF2396N Parts
About QF2396N Ice Machine Parts
We carry OEM parts for the QF2396N ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
