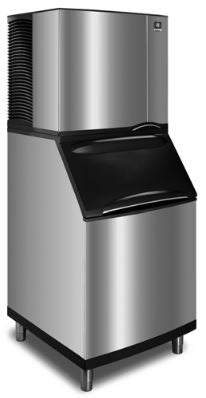

QY0454A

Parts associated with QY0454A

• 7627823 — Control Board
• 2511003 — 7 Amp Fuse - Mounted on Control Board
• 2301343 — Toggle Switch Only
• 2032173 — Toggle Switch with Wiring Harness Attached
• 2006589 — Contactor - 115V/60 Hz/1 Ph
• 2006599 — Contactor - 230V/50-60 Hz/1 Ph
• 8505003 — PTCR Compressor Starter
• 2010143 — Run Capacitor - 115V/60 Hz/1 Ph
• 8504003 — Run Capacitor - 208-230V/50-60 Hz/1 Ph
• 2032283 — Wiring Harness - 115V/60 Hz/1 Ph
• 2032293 — Wiring Harness - 230V/60 Hz/1 Ph
• 8373263 — Refrigeration Service Valve Assembly
• 5475039 — Locknut - 0.375" - 18 NPS
• 6025593 — Control Box
• 7628523 — Control Box Cover
• 8505023 — PTCR Mounting Bracket
• 4302253 — Control Board Mounting Supports
• 6024951 — Capacitor Bracket
• 5202169 — Screw - #10-24 x 0.50" Ground
• 5202069 — Screw - #10-24 x 0.50" HEX
• 7625129 — Evaporator - Regular Cube
• 7625119 — Evaporator - Dice Cube
• 7625109 — Evaporator - Half Dice Cube
• 7623063 — Water Pump - 115V/60 Hz
• 7626013 — Water Pump - 230V/50-60 Hz
• 2511293 — Water Level Probe
• 7627813 — Ice Thickness Control Probe
• 2301483 — Magnetic Bin Switch
• 7620543 — Water Flow Clamp - Use on Regular Cube Evap. Only
• 4304643 — Water Curtain
• 7624983 — Water Distribution Tube - B/J/Q
• 4300629 — Water Trough Plug
• 4303883 — Water Inlet Flow Tube
• 7628023 — Water Curtain Magnet and Cap
• 4421113 — Water Inlet Tubing 0.375 ID
• 4421093 — Water Pump Tubing
• 5000013 — Thumbscrew - #8-32 x 0.375"
• 5202189 — Screw - #10-24 x 0.75"
• 7628063 — Base and Water Trough Repair Kit
• 7626213 — Evaporator Top Molding and Gasket Assembly
• 7627763 — Water Curtain Pin Assembly
• 7628103 — Compressor - Tecumseh - 115V/60 Hz/1 Ph
• 8505553 — Overload
• 7628123 — Compressor - Tecumseh - 208-230V/60 Hz/1 Ph
• 8505563 — Overload
• 7628113 — Compressor - Tecumseh - 230V/50 Hz/1 Ph
• 8505573 — Overload
• 000001767 — Water Dump Valve - 115V/60 Hz
• 000001768 — Water Dump Valve - 208-230V/50-60 Hz
• 7630011 — Danfoss Solenoid Valve with Coil - 115V/60 Hz
• 000005156 — Danfoss Solenoid Valve Coil Only - 115V/60 Hz
• 2404363 — Alco Solenoid Valve Coil Only - 115V/60 Hz
• 7630071 — Danfoss Solenoid Valve with Coil - 208-230V/50-60 Hz
• 000005157 — Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz
• 2404483 — Alco Solenoid Valve Coil Only - 230V/50 Hz
• 000007965 — Water Inlet Valve - 115V/60 Hz/1 Ph
• 000007966 — Water Inlet Valve - 208-230V/50-60 Hz
• 7600193 — Expansion Valve
• 4007213 — Valve Insulation Boot - Body
• 4000363 — Valve Insulation Boot - Body
• 4007203 — Valve Insulation Boot - Bulb
• 8310163 — Manifold Strainer
• 2078103 — Water Pump Electrical Wire Lead
• 2355369 — High Pressure Cut-out Control
• 2001243 — High Pressure Cut-out Control
• 6023541 — Dump Valve/Water Inlet Valve Mounting Bracket
• 6019501 — Right Corner Post Weldment
• 8706083 — Female Wing Adapter - 0.50"
• 4420383 — Clear Tubing - 0.625" ID
• 8503069 — Mounting - Rubber Grommet
• 5573419 — Washer
• 5012309 — Compressor Mounting - Screw
• 5650709 — Snap Clamp - 0.799"/0.899" ID
• 5650529 — Clamp - Expansion Valve Bulb
• 5202099 — Screw - #10-24 x 0.50" PHIL
• 2006143 — Terminal Block - 50 Hz - 3 Pole
• 8851243 — Air Condenser
• 2412929 — Fan Motor 115V/60 Hz/1 Ph
• 2412939 — Fan Motor 208-230V/50-60 Hz
• 2416203 — Fan Blade
• 2001263 — Fan Cycling Control - 200-250 psig
• 4040163 — Air Filter
• 8930259 — Drier
• 5650699 — Air Filter Clip
• 6018791 — Fan Shroud
• 3406623 — Fan Motor Bracket
• 5025599 — Screw - #8-36 x 0.375"
• 5504269 — Flatwasher #8
• 5033589 — Mounting - Screw
• 5545109 — Lockwasher
• 5573059 — Mounting - Flatwasher
• 5429559 — Mounting - Rubber Wellnut
• 6021681 — Left Corner Post Weldment
• 000008892 — Receiver
• 8865323 — Water-Cooled Condenser
• 8372069 — Water Regulating Valve
• 6000541 — Receiver Strap
• 6019061 — Back Panel
• 8332033 — Water Coupling
• 6019511 — Left Corner Post Weldment
• 8930279 — Drier
• 7629573 — Receiver
• 8373149 — Magni-Check Valve - 0.375"
• 8373169 — Receiver Service Valve
• 5650753 — Caps for Refrigeration Service Valve
• 7630001 — Danfoss Solenoid Valve with Electrical Coil - 115V/60 Hz
• 8367793 — Harvest Pressure Regulating Valve
• 8360343 — Coupling - Male - 5/8-18
• 8360353 — Coupling - Male - 1-1/6-12
• 8360053 — Coupling Mounting Flange for 5/8-18
• 8360063 — Coupling Mounting Flange for 1-1/16-12
• 6017371 — Drier Support Bracket
• 6000561 — Receiver Mounting Bracket
• 6307214 — Receiver Mounting Strap
• 7628533 — Front Panel Assembly
• 7628303 — Left Side Panel
• 6023631 — Air Baffle
• 6019981 — Back Panel
• 6019971 — Back Panel, Air
• 7628313 — Right Side Panel
• 4303313 — Top Cover
• 5119019 — Screw - #8 x 1.75"
• 5573389 — Washer - Nylon 0.171" x 0.38"
• 5648279 — Screw Retainer - Nylon #8
• 5473039 — Speed Nut Assembly to Mount Front Cover
• 9202509 — Extruded Tape
• 6580419 — Front Top Support
• 8850639 — Air Condenser
• 7629423 — Fan Motor - 115V/60 Hz/1 Ph
• 2416113 — Fan Blade
• 3400643 — Fan Guard
• 2415053 — Rain Slinger
• 000004070 — Head Pressure Control Valve
• 000008040 — Terminal Block - 3 Pole
• K0129 — Female Line Set Coupling Kit
• 6017751 — Top Cover
• 6017741 — Panel - Side
• 6017731 — Panel - Rear
• 6017721 — Panel - Front
• 6017681 — Fan Motor Mounting Bracket
• 6017761 — Electrical Box Cover
• 5035659 — Fan Motor Mounting Screw
• 5573099 — Mounting - Flatwasher
• 5573139 — Mounting - Lockwasher
• 5429759 — Mounting - Hexnut
• 5033459 — Screw - 1/4-20 x 0.625"
• 5573049 — Flatwasher
• 5545119 — Mounting - Lockwasher
• 5429529 — Mounting - Hexnut
• 5121539 — Panel/Condenser Mounting Screw - #8 x 0.50"
• 5544599 — Panel/Condenser Mounting Lockwasher
• 7626843 — Valve Cores
• 6017691 — Legs
