RFS0300A
Find Parts for RFS0300A
Browse OEM replacement parts for the RFS0300A ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
RFS0300A
Buy Filters for this Model
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with RFS0300A
- 000005685 — Evaporator Assembly
- 000005693 — Evaporator Foundation
- 000012459 — Bolt - Evaporator Foundation - M6 x 25mm
- 000011126 — Gearmotor Assembly - 115V/60 Hz/1 Ph
- 000011800 — Gearmotor Assembly - 208-230V/50-60 Hz/1 Ph
- 000005734 — Insulating Cap
- 000005608 — Bearing Cap
- 000005757 — Snap Ring
- 000005599 — Auger Bolt
- 000005609 — Bearing Shim
- 000005650 — Self Lubricating Disc
- 000005607 — Upper Bearing
- 000005735 — Upper O-ring
- 000005647 — Cutter Head
- 000005598 — Auger
- 000005778 — Water Seal
- 000005681 — Evaporator
- 000005583 — O-ring Gasket
- 000005782 — Water Seal Retainer
- 000005605 — Lower Bearing
- 000005642 — Coupling
- 000011625 — Ice Chute with Bulb Holder and Bin Thermostat
- 000011621 — Ice Chute with Bulb Holder
- 000007906 — Ice Exhaust with Microswitch
- 000011623 — Bin Thermostat
- 000007910 — Cross Bar
- 000007907 — Locking Strip
- 000007908 — Bulb Holder
- 000007911 — Ice Chute Assembly
- 000007909 — Ice Outlet Pipe Assembly
- 000008833 — Compressor - 115V/60 Hz/1 Ph
- 000005627 — Compressor - 208-230V/50-60 Hz/1 Ph
- 000010803 — Overload - 115V/60 Hz/1 Ph
- 000008835 — Condenser Fan Motor - 115V/60 Hz/1 Ph
- 000009256 — Condenser Fan Motor - 208-230V/50-60 Hz/1 Ph
- 000005632 — Air Condenser
- 000012451 — Water Reservoir Assembly
- 000012012 — Electronic Compressor Delay Timer

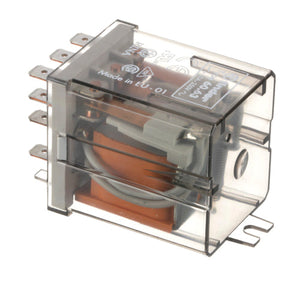

- 000005746 — Compressor Delay Relay - 115V/60 Hz/1 Ph
- 000005745 — Compressor Delay Relay - 230V/50-60 Hz/1 Ph
- 000005768 — Evaporator Safety Thermostat
- 000005765 — Bin Thermostat
- 000006060 — Fan Cycle Control - 115-230V/50-60 Hz/1 Ph
- 000006191 — Fan Cycle Control - 208-230V/50-60 Hz/1 Ph
- 000005763 — ON/OFF Rocker Switch
- 000005680 — Electronic Noise Reducer
- 000005678 — Electronic Noise Reducer
- 000005760 — Float Microswitch (each)
- 000006063 — Water Inlet Valve - 115V/60 Hz/1 Ph
- 000005770 — Water Inlet Valve - 220-230V/50-60 Hz/1 Ph
- 000005676 — Drier
- 000008838 — Expansion Valve
- 000005686 — Condenser Fan Blade
- 000006162 — Drain Manifold - 115V/60 Hz/1 Ph
- 000005673 — Drain Manifold - 230V/50 Hz/1 Ph
- 000006408 — Fitting - Access Valve
- 000006409 — Core - Access Valve
- 000006410 — Cap - Access Valve
- 000009040 — Screw - M5 x 10TC
- 000009041 — Screw - 3.9 x 13TC
- 000009971 — Backflow Preventer 60 Hz - 3/8'
- 000009972 — Backflow Preventer 50 Hz - 3/4'
- 000008759 — Top Panel
- 000008836 — Back Panel - Air-cooled or Water-cooled 50 Hz
- 000009255 — Back Panel - Air-cooled
- 000009104 — Back Panel - Water-cooled
- 000008768 — Left Side Panel
- 000008757 — Right Side Panel
- 000008755 — Front Panel Assembly
- 000008837 — Air Filter
- 000011923 — Cartoning
Shop RFS0300A Parts
About RFS0300A Ice Machine Parts
We carry OEM parts for the RFS0300A ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
