RFS0650W
Find Parts for RFS0650W
Browse OEM replacement parts for the RFS0650W ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
RFS0650W
Buy Filters for this Model
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with RFS0650W
- 000005683 — Evaporator Assembly
- 000005694 — Evaporator Foundation
- 000012459 — Bolt - Evaporator Foundation - M6 x 25mm
- 000008947 — Gearmotor Assembly - 220V/60 Hz/1 Ph
- 000011126 — Gearmotor Assembly - 115V/60 Hz/1 Ph
- 000007825 — Gearmotor Capacitor - 115V/60 Hz/1 Ph
- 000007822 — Gearmotor Capacitor - 230V/50 Hz/1 Ph
- 000007823 — Gearmotor Capacitor - 220V/60 Hz/1 Ph
- 000005733 — Insulating Cap
- 000005645 — Bearing Cap
- 000005758 — Snap Ring
- 000005600 — Auger Bolt
- 000005610 — Bearing Shim
- 000005651 — Self Lubricating Disc
- 000005606 — Upper Bearing
- 000005736 — Upper O-ring
- 000005648 — Cutter Head
- 000005596 — Auger
- 000005778 — Water Seal
- 000005584 — Lower O-ring
- 000005781 — Water Seal Retainer
- 000005603 — Lower Bearing
- 000005643 — Flex Jaw Coupling Lower
- 000005644 — Flex Jaw Coupling Spider

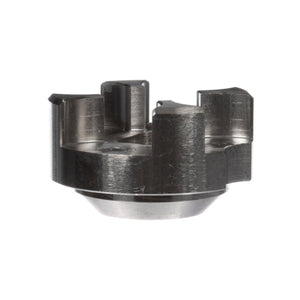

- 000005572 — Flex Jaw Coupling Upper
- 000011622 — Ice Chute with Bulb Holder
- 000011632 — Ice Chute with Bulb Holder and Bin Thermostat
- 000007906 — Ice Exhaust with Microswitch
- 000011623 — Bin Thermostat
- 000007907 — Locking Strip
- 000007914 — Cross Bar
- 000007915 — Ice Chute Assembly
- 000006540 — Bulb Holder
- 000007913 — Ice Outlet Pipe Assembly
- 000008642 — Ice Chute Extension
- 000008549 — Compressor - 115V/60 Hz/1 Ph
- 000008970 — Compressor - 230V/60 Hz/1 Ph
- 000008302 — Fan Motor - 115V/60 Hz/1 Ph
- 000005579 — Fan Motor - 208-230V/50-60 Hz/1 Ph
- 000012281 — Bracket - Fan Motor
- 000005631 — Air Condenser
- 000008299 — Water-cooled Condenser
- 000012451 — Water Reservoir Assembly
- 000008558 — Compressor Contactor - 115V/60 Hz/1 Ph
- 000012279 — Compressor Contactor - 115V/60 Hz/1 Ph
- 000008462 — Compressor Contactor - 208-230V/60 Hz/1-3 Ph
- 000006076 — Low Pressure Safety Switch
- 000005765 — Bin Thermostat
- 000006060 — Fan Cycle Control - 115-230V/50-60 Hz/1 Ph
- 000006191 — Fan Cycle Control - 208-230V/50-60 Hz/1 Ph
- 000005763 — ON/OFF Rocker Switch
- 000005678 — Electronic Noise Reducer
- 000005680 — Electronic Noise Reducer
- 000005760 — Float Microswitch (each)
- 000006058 — Water Inlet Valve - 220V/60 Hz/1 Ph
- 000006063 — Water Inlet Valve - 115V/60 Hz/1 Ph
- 000008296 — Water Regulating Valve
- 000008300 — Drain Manifold - 208-230V/60 Hz/1 Ph
- 000008552 — Evaporator Drain Tap
- 000005676 — Drier
- 000005730 — Ice Chute
- 000005762 — Ice Chute Safety Switch
- 000008557 — High Pressure Safety Switch
- 000011883 — Rotation Sensor
- 000008548 — Expansion Valve
- 000005689 — Condenser Fan Blade - 208-230V/60 Hz/1 Ph
- 000006190 — Condenser Fan Blade - 115V/60 Hz/1 Ph
- 000006408 — Fitting - Access Valve
- 000006409 — Core - Access Valve
- 000006410 — Cap - Access Valve
- 000009040 — Screw - M5 x 10TC
- 000009041 — Screw - 3.9 x 13TC
- 000009971 — Backflow Preventer 60 Hz - 3/8'
- 000009972 — Backflow Preventer 50 Hz - 3/4'
- 000008759 — Top Panel
- 000009103 — Back Panel - Air-cooled
- 000009104 — Back Panel - Water-cooled
- 000008836 — Back Panel - Air-cooled or Water-cooled
- 000008971 — Back Panel - Water-cooled
- 000008768 — Left Side Panel
- 000008757 — Right Side Panel
- 000008755 — Front Panel Assembly
- 000009102 — Air Filter
- 000011923 — Cartoning
Shop RFS0650W Parts
About RFS0650W Ice Machine Parts
We carry OEM parts for the RFS0650W ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
