RNS0244A
Find Parts for RNS0244A
Browse OEM replacement parts for the RNS0244A ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
RNS0244A
Buy Filters for this Model
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with RNS0244A
- 000012041 — Ice Exhaust & Insulating Cap
- 000008952 — Ice Exhaust
- 000008881 — Insulating Cap
- 000008889 — Ice Breaker
- 000009156 — Extruder with Bearings Assembly
- 000009157 — Auger
- 000008900 — O-ring Gasket
- 000006426 — Water Seal
- 000005583 — O-ring Gasket
- 000005782 — Water Seal Retainer
- 000008938 — Seal Ring
- 000008898 — Bearing
- 000008897 — Foundation
- 000008967 — Joint
- 000012038 — Evaporator Assembly
- 000009159 — Evaporator Assembly
- 000011126 — Gearmotor Assembly - 115V/60 Hz/1 Ph
- 000011800 — Gearmotor Assembly - 208-230V/50-60 Hz/1 Ph
- 000012280 — Gearmotor Assembly - 220V/50 Hz/1 Ph
- 000011956 — Compressor - Embraco - 115V/60 Hz/1 Ph
- 000005615 — Compressor - Tecumseh - 115V/60 Hz/1 Ph
- 000005614 — Compressor - Tecumseh - 230V/50 Hz/1 Ph
- 000005746 — Compressor Delay Relay - 115V/60 Hz/1 Ph
- 000005745 — Compressor Delay Relay - 230V/50-60 Hz/1 Ph

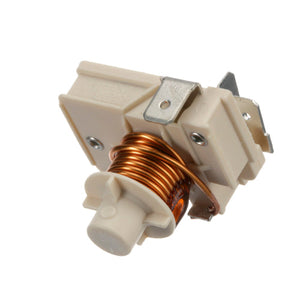

- 000008384 — Start Relay - 115V/60 Hz/1 Ph
- 000008383 — Start Relay - 230V/50 Hz/1 Ph
- 000012337 — Start Capacitor - 115V/60 Hz/1 Ph
- 000008426 — Start Capacitor - 115V/60 Hz/1 Ph
- 000005578 — Fan Motor - 115V/60 Hz/1 Ph
- 000005574 — Fan Motor - 208-230V/50-60 Hz/1 Ph
- 000005629 — Air Condenser
- 000005635 — Water-cooled Condenser
- 000012450 — Water Reservoir Assembly
- 000005768 — Evaporator Safety Thermostat
- 000005766 — Bin Thermostat
- 000006060 — Fan Cycle Control - 115-230V/50-60 Hz/1 Ph
- 000006191 — Fan Cycle Control - 208-230V/50-60 Hz/1 Ph
- 000006069 — ON/OFF Rocker Switch
- 000005680 — Electronic Noise Reducer
- 000005760 — Float Microswitch (each)
- 000006063 — Water Inlet Valve - 115V/60 Hz/1 Ph
- 000005770 — Water Inlet Valve - 220-230V/50-60 Hz/1 Ph
- 000005674 — Drier
- 000009160 — Evaporator Drain Tap
- 000005687 — Condenser Fan Blade - 60 Hz
- 000005688 — Condenser Fan Blade - 50 Hz
- 000005573 — Condenser Fan Blade - Water-cooled
- 000006409 — Core - Access Valve
- 000006408 — Fitting - Access Valve
- 000006410 — Cap - Access Valve
- 000009040 — Screw - M5 x 10TC
- 000009041 — Screw - 3.9 x 13TC
- 000009971 — Backflow Preventer 60 Hz - 3/8'
- 000009972 — Backflow Preventer 50 Hz - 3/4'
- 000005741 — Top Panel
- 000008948 — Ice Spout Cover Bracket
- 000012042 — Ice Spout Cover Bracket
- 000005665 — Back Panel Assembly
- 000005700 — Back Grill
- 000008965 — Foamed Cabinet Assembly 115/60/1
- 000008955 — Foamed Cabinet Assembly 220/60/1 or 230/50/1 Water-cooled
- 000008966 — Foamed Cabinet Assembly 115/60/1
- 000008956 — Foamed Cabinet Assembly 220/60/1 or 230/50/1
- 000005585 — Front Grill Panel
- 000005601 — Base Plate
- 000005659 — Door Assembly
- 000005783 — Plastic Legs
- 000005663 — Adjustable Stainless Steel Legs
- 000006162 — Drain Manifold - 115V/60 Hz/1 Ph
- 000005671 — Drain Manifold - 208-230V/50-60 Hz/1 Ph
- 000005581 — Bin Drain Nut
- 000005695 — Bin Drain Gasket Bottom
- 000005696 — Bin Drain Gasket Top
- 000005692 — Bin Drain Fitting
- 000006075 — Bin Bulb Holder
- 000008684 — Cartoning
Shop RNS0244A Parts
About RNS0244A Ice Machine Parts
We carry OEM parts for the RNS0244A ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
