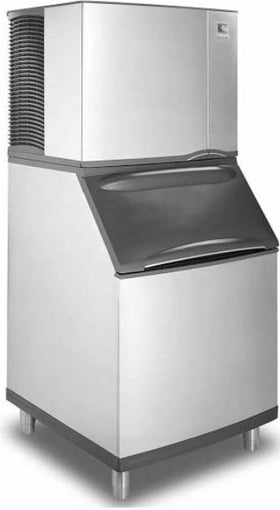

Click Here for SD0302A Parts Breakdown

Parts associated with SD0302A (confirm with breakdown)

• 2006199 — Control Board
• 000008240 — 7 Amp Fuse - Mounted on Control Board
• 2007939 — Toggle Switch
• 2008079 — Toggle Switch Wiring Harness
• 4011639 — Toggle Switch Box
• 2006589 — Contactor - 115V/60 Hz/1 Ph
• 2006599 — Contactor - 230V/50-60 Hz/1 Ph
• 000002671 — Start Potential Relay - 115V/60 Hz/1 Ph
• 2002053 — Start Potential Relay - 115V/60 Hz/1 Ph
• 2007929 — Start Potential Relay - 208-230V/50-60 Hz/1 Ph
• 2002103 — Start Potential Relay - 230V/50-60 Hz/1 Ph
• 2000483 — Start Capacitor - 115V/60 Hz/1 Ph
• 8505773 — Start Capacitor - 115V/60 Hz/1 Ph
• 000000022 — Start Capacitor - 230V/50-60 Hz/1 Ph
• 8503723 — Start Capacitor - 208-230V/50-60 Hz/1 Ph
• 2010143 — Run Capacitor - 115V/60 Hz/1 Ph
• 2009493 — Run Capacitor - 208-230V/50-60 Hz/1 Ph
• 8373263 — Refrigeration Service Valve Assembly
• 7602143 — Control Box
• 7602153 — Control Box Cover
• 5004129 — Screw - #6 x 0.5"
• 4302253 — Control Board Mounting Supports
• 6024953 — Capacitor Mounting Strap
• 6021601 — Capacitor Mounting Strap
• 5202169 — Screw - #10-24 x 0.50" Ground
• 5573209 — Star Washer
• 5202069 — Screw - #10-24 x 0.50" HEX
• 2008159 — Control Box Wiring Harness - 115V/60 Hz/1 Ph
• 2008179 — Control Box Wiring Harness - 230V/50 Hz/1 Ph
• 2008169 — Control Box Wiring Harness - 230V/60 Hz/1 Ph
• 2008273 — Control Box Wiring Harness - 115V/60 Hz/1 Ph
• 2008293 — Control Box Wiring Harness - 230V/50 Hz/1 Ph
• 2008283 — Control Box Wiring Harness - 230V/60 Hz/1 Ph
• 7602699 — Evaporator - Dice Cube
• 7602709 — Evaporator - Half Dice Cube
• 2007679 — Water Pump - 115V/60 Hz
• 2007669 — Water Pump - 230V/50 Hz
• 2007659 — Water Pump - 230V/60 Hz
• 2006549 — Water Level Probe
• 2007989 — Wire - Control Box to Probe
• 2008029 — Ice Thickness Control Probe
• 000007888 — Magnetic Bin Switch
• 4011149 — Water Curtain
• 7602193 — Water Distribution Tube - 30" Models
• 5004649 — O-Rings
• 000002106 — Water Trough
• 4003609 — Water Trough
• 4008469 — Evaporator Top Filler Panel
• 6064969 — Filler Panel Bracket
• 5202099 — Screw - #10-24 x 0.50" PHIL
• 7602203 — Evaporator Top Frame Assembly
• 7602213 — Water Diverter - 30" Models
• 5305123 — Thumbscrew SS - #8-32 x 0.44"
• 5004799 — Thumbscrew SS - #8-32 x 0.375"
• 5004629 — O-Ring - 0.125" ID
• 5004619 — Screw - #12-16 x 0.687"
• 5004659 — Water Pump Base O-Ring - 4.00" ID
• 5004679 — Water Pump Outlet O-Ring - 0.875" ID
• 000001382 — Vinyl Tubing 0.625" ID
• 6038831 — Insulation 0.88 ID X 0.25W X 13.50L
• 7601363 — Compressor - Danfoss - 115V/60 Hz/1 Ph
• 7601373 — Compressor - Danfoss - 230V/50 Hz/1 Ph
• 000003921 — Compressor - 115V/60 Hz/1 Ph
• 000003922 — Compressor - 208-230V/50-60 Hz/1 Ph
• 8251403 — Overload - 115V/60 Hz/1 Ph
• 000001767 — Water Dump Valve - 115V/60 Hz
• 000001768 — Water Dump Valve - 208-230V/50-60 Hz
• 7630011 — Danfoss Solenoid Valve With Coil - 115V/60 Hz
• 7630071 — Danfoss Solenoid Valve With Coil - 208-230V/50-60 Hz
• 000005156 — Danfoss Solenoid Valve Coil Only - 115V/60 Hz
• 000005157 — Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz
• 000000375 — Water Inlet Valve - 115V/60 Hz/1 Ph
• 000009126 — Water Inlet Valve - 208-230V/50-60 Hz
• 7600173 — Expansion Valve
• 4013409 — Valve Insulation Boot - Body
• 4007203 — Valve Insulation Boot - Bulb
• 000008364 — Manifold Strainer
• 2001243 — High Pressure Cut-out Control
• 6063989 — Electrical Connection Box Cover
• 6063979 — Electrical Connection Box Cover
• 2006143 — Terminal Block - 50 Hz - 3 Pole
• 2007329 — Compressor Compartment Wiring Harness - Water-cooled
• 2007319 — Compressor Compartment Wiring Harness - Air-cooled
• 6058459 — Water Dump Valve Mounting Bracket
• 8706093 — Female Wing Adapter - 0.375"
• 1360961 — Male Connector
• 8706083 — Female Wing Adapter - 0.50"
• 4420383 — Clear Tubing - 0.625" ID
• 6061709 — Compressor Mounting Base
• 5000899 — Compressor Rubber Grommet
• 5000909 — Sleeve
• 5004993 — Compressor Mounting Bolt 1/4-20 x 1 1/4
• 5005003 — Compressor Mounting Nut
• 2008553 — Compressor Wiring Harness
• 5650709 — Snap Clamp - 0.799"/0.899" ID
• 5650529 — Clamp - Expansion Valve Bulb
• 3000833 — Strap - Expansion Valve Bulb - 0.375"
• 6058371 — Left Corner Post
• 6068649 — Left Top Channel
• 6063501 — Right Corner Post
• 6062579 — Right Top Channel
• 000003403 — Insulated Tube
• 5650603 — Snap Clamp - 1.0" ID
• 5650703 — Snap Clamp - 0.799"/0.899" ID
• 4010439 — Tubing - Water Inlet Valve
• 1360989 — Connector - Water Inlet Valve
• 000002473 — Check Valve Replacement
• 2006559 — Water Level Probe Holder
• 8851303 — Air Condenser
• 2412813 — Fan Motor - 115V/60 Hz
• 2412823 — Fan Motor - 208-230V/50-60 Hz
• 2416223 — Fan Blade
• 2001263 — Fan Cycling Control - 200-250 psig
• 3005699 — Air Filter
• 8930259 — Drier
• 5650699 — Air Filter Clip
• 6058399 — Fan Shroud
• 6027431 — Fan Motor Mounting Bracket
• 5025599 — Screw - #8-36 x 0.375"
• 5475079 — Speed Nut - 0.25" x 20
• 000008892 — Receiver
• 000000045 — Water-cooled Condenser
• 8372069 — Water Regulating Valve
• 000007553 — High Pressure Water Regulating Valve
• 8706103 — Female Wing Adapter - 0.50"
• 6000541 — Receiver Strap
• 6061739 — Back Coupling Panel - Water-cooled and Remote Air-cooled
• 5002159 — Elbow 3/8 MF x 3/8 MPT
• 5573419 — Washer
• 6058659 — Base, Water Condenser/Receiver
• 6060519 — Left Side Panel
• 6060509 — Right Side Panel
• 6060879 — Back Panel - Air-cooled
• 6061069 — Air Baffle
• 6061049 — Back Panel - Water-cooled and Remote Air-cooled
• 000006699 — Top Cover
• 6071621 — Right Door
• 6071591 — Left Door
• 000000295 — Front Top Rail
• 5005379 — Mounting Screw - #8-32 x 1" PHIL
• 5005099 — Mounting Screw - #10-16 x 0.625" PHIL
• 5004899 — Front Door Screw
• 4015113 — Left Door End Cap - Top
• 4015123 — Left Door End Cap - Bottom
• 4015143 — Right Door End Cap - Top
• 4015153 — Right Door Endcap - Bottom
• 7602263 — Bottom Door Frame
• 6062369 — Door Catch Bracket
• 5026249 — Mounting Screw - #8-32 x 0.50" PHIL
• 3005579 — Left Door Pivot Leaf Hinge
• 4004593 — Sachet Holder
• 7112299 — Cartoning
