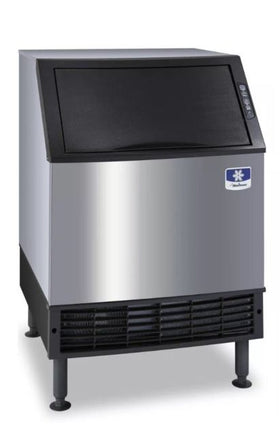

UY0140A

Find Parts for UY0140A

Browse OEM replacement parts for the UY0140A ice machine and use the parts diagram below to identify the correct component before ordering.

Click Here for UY0140A Parts Breakdown

Parts Associated with UY0140A (Confirm with breakdown)

040002007 – Control Board
000012211 – 3.5 amp Ceramic Fuse
040002052 – Wiring Harness - Control Board to Sensors
040002053 – Wiring Harness - Control Board to Touch Pad
2006569 – Contactor - 115V/60 Hz/1 Ph
2006579 – Contactor - 230V/50-60 Hz/1 Ph
000002901 – Start Capacitor - 115V/60 Hz/1 Ph
040000674 – Start Capacitor
000002899 – Current Relay with Overload - 115V/60 Hz/1 Ph
000002900 – Relay
8251333 – Relay Cover
040004016 – Wiring Harness - Air-cooled
040004015 – Wiring Harness - Water-cooled
2006863 – Power Cord - 115V/60 Hz
2033023 – Power Cord - 230V/50 Hz
2512043 – Terminal Block
040002028 – Control Box
040002029 – Control Box Cover
4302253 – Control Board Mounting Supports
5202329 – Screw - #10-24 x 0.25" PHIL
5573209 – Star Washer
2500139 – Bushing - 1.5"
2501409 – Bushing - 0.875"
040002479 – Bushing - OSB-22
000011549 – Evaporator - Regular Cube
000011550 – Evaporator - Dice Cube
000011551 – Evaporator - Half Dice Cube
040003291 – Water Pump - 115V/60 Hz
040003293 – Water Pump - 208-230V/60 Hz
040003292 – Water Pump - 230V/50 Hz
040003303 – Pump Flow Restrictor
040003579 – Water Inlet Valve - 115V/60 Hz
040003580 – Water Inlet Valve - 230V/50-60 Hz/1 Ph
040003385 – Mylar Shield
000001767 – Water Dump Valve - 115V/60 Hz
000001768 – Water Dump Valve - 208-230V/50-60 Hz
040002396 – Harvest Float Switch
040001777 – Bracket - Float Switch
040001783 – Ice Thickness Float Switch
040003386 – Bracket - Ice Thickness Float Switch
040002393 – Magnetic Bin Switch
000011556 – Ice Damper
040002049 – Water Distribution Cover
040002054 – Water Trough
040002014 – Fitting - Water Trough
040002034 – O-ring
040002880 – Rear Trough
040002475 – Drain Sink
040002013 – Drain Tube
040002389 – Trough Tube
040002390 – Water Tube
040002497 – Water Inlet Valve Tubing
040001217 – Thumbscrew - #8-32 x 0.625"
5202069 – Screw - #10-24 x 0.50" HEX
000009053 – Evaporator Side Damper Mount
040001995 – Bracket - Water Dump Valve
040002931 – Bracket - Water Pump
8706133 – Female Wing Adapter - 0.50"
5650649 – Spray Bar Clamp
5650709 – Snap Clamp - 0.799"/0.899" ID
040002765 – Compressor - Danfoss - 115V/60 Hz/1 Ph
040000434 – Compressor - 208-230V/50-60 Hz
040000689 – Hot Gas Valve 115/60/1 Ph
040000101 – Hot Gas Valve Coil Only 115/60/1 Ph
040000690 – Hot Gas Valve 230V/50-60 Hz/1 Ph
040000103 – Hot Gas Valve Coil Only 230V/50-60 Hz/1 Ph
2001243 – HPCO
000011558 – Expansion Valve
3000833 – Strap - Expansion Valve Bulb - 0.375"
4000363 – Valve Insulation Boot - Body
4007203 – Valve Insulation Boot - Bulb
8251063 – Manifold Strainer
8373253 – Access Valve
8930259 – Drier
K00440 – LuminIce - NEO
040002442 – Bracket - Valve
040002019 – Water Adapter - Male
040002021 – Water Adapter - Female
040002382 – Wire Bushing
5650539 – Snap Clamp - 1.123 x 1.296
5650529 – Clamp - Expansion Valve Bulb
8503069 – Compressor Mounting - Rubber Grommet
5573099 – Compressor Mounting - Flatwasher
5648269 – Compressor Mounting Retainer
8503949 – Compressor Mounting - Sleeve
3712109 – Compressor Clevis Pin - 0.25" x 1.0"
5648289 – Compressor Hairpin Clip
040002395 – Air Condenser
040001943 – Fan Motor - 115V
040001944 – Fan Motor - 230V
2001263 – Fan Cycling Control - 200-250 psig
040002435 – Air Filter
040002031 – Fan Shroud
040002384 – Fan Guard
040002451 – Mounting Bolts
040002910 – Bracket - Air Filter
000008892 – Receiver
000000045 – Water-cooled Condenser
040002912 – Water Regulating Valve
5002193 – Fitting - Water Regulating Valve
8706103 – Adapter - 0.5" NPT x 0.375" ODF
040002045 – Strap - Receiver
040002044 – Bracket - Receiver
8332023 – Coupling - 0.375" MF x 0.375" NPT Brass
040003501 – Door Frame with Touch Pad
040004168 – Door
040004329 – Door Track Assembly
040002926 – Top Cover
040004104 – Cabinet Assembly
040004274 – Front Lower Louvered Panel (grill)
040001994 – Back Panel - Upper
040002461 – Back Panel - Lower - Air-cooled
040001921 – Back Panel - Lower - Water-cooled
040002930 – Ice Scoop - UnderCounter
040002033 – Ice Scoop Holder - UnderCounter
040002462 – Bracket - Top Panel
040003312 – Bracket - Side Panel - Right
040003314 – Bracket - Side Panel - Left
040002046 – Bracket - Door Track - Right
040002047 – Bracket - Door Track - Left
040001773 – Bracket - Cabinet Track - Right
040001774 – Bracket - Cabinet Track - Left
040002020 – Bulkhead Gasket
040003585 – Cartoning

View all Manitowoc ice machine models

Sort by

Shop UY0140A Parts

MANITOWOC 040002396 SWITCH FLOAT HARVEST

Save $3.51

MANITOWOC 040001783 SWITCH FLOAT ICE THICKNESS

Save $3.51

MANITOWOC 040003579 VALVE WATER INLET 115V

Save $4.11

MANITOWOC 040003501 CHINA FRAME ASSY W TOUCH PAD

Save $12.10

MANITOWOC 040001217 THUMBSCREW, 8-32 X .44 LG SS

Save $0.60

MANITOWOC 040002435 FILTER AIR

Save $1.51

MANITOWOC 040002013 MOLDED TUBE, WHITE

Save $4.91

MANITOWOC 040003291 PUMP WATER 115/60/1; NLA REPLACE WITH 040006556

MANITOWOC 2001263 SWITCH PRESSURE FCC NO 200/250; NLA REPLACE WITH 000013508

MANITOWOC 040000101 COIL 120V 60HZ

Save $4.15

MANITOWOC 040002393 SWITCH MAGNETIC BIN

Save $5.13

MANITOWOC 5650649 HOSE CLAMP PKG OF 2

Save $0.57

MANITOWOC 2006569 CONTACTOR - 1 POLE 115V

Save $4.40

MANITOWOC 000011549 EVAPORATOR ASSY REG U140 SERVICE

Save $56.57

MANITOWOC 040003293 PUMP WATER 208-230/60/1; NLA REPLACE WITH 040006558

MANITOWOC 040003292 PUMP WATER 230/50/1; NLA REPLACE WITH 040006557

MANITOWOC 040002475 U240 SINK,DRAIN; NLA REPLACE WITH 040006053

MANITOWOC 040003585 KIT U240/190/140 CARTON ASSEMBLY; NLA REPLACE WITH 040005812

MANITOWOC 040002461 Evap. Support/Coupling Panel,AIR; NLA REPLACE WITH 040005612

MANITOWOC 040001921 EVAP. SUPPORT/COUPLING PANEL; NLA REPLACE WITH 040005612

MANITOWOC 040001994 PANEL, BACK; NLA REPLACE WITH 040005608

MANITOWOC 040002034 O-RING .864ID X .070CSD EPDM70; NLA REPLACE WITH 040004330

MANITOWOC 040001777 BRACKET FLOAT SWITCH; NLA REPLACE WITH 040004206

MANITOWOC 040002926 U240 PANEL TOP ASSM; NLA REPLACE WITH 040004167

MANITOWOC 040002931 PUMP BRKT U240; NLA REPLACE WITH 040004118

MANITOWOC 040002462 BRACKET, TOP PANEL; NLA REPLACE WITH 040003667

040002021 WATER ADAPTORS,FEMALE ORCA, replaced with 040003535

040002019 WATER ADAPTORS MALE ORCA, replaced with 040003535

MANITOWOC 040002007 BOARD CONTROL 115V/230V; NLA REPLACE WITH 000015302

MANITOWOC 000012211 FUSE CONTROL BOARD; NLA REPLACE WITH 000015010

MANITOWOC 000001768 VALVE DUMP - 208-220V; NLA REPLACE WITH 000014063

MANITOWOC 000001767 VALVE DUMP - 120V; NLA REPLACE WITH 000014062

MANITOWOC 2001243 SWITCH, PRESSURE, HPC, NC, 300/450; NLA REPLACE WITH 000013579

MANITOWOC 040002053 WIRE HARNESS - CTRL BX TO WIRE CHASE CON; NLA REPLACE WITH 000012046

MANITOWOC 8706133 ADAPTER, .50IDX.63OD 1/2NPTF; NLA REPLACE WITH 000005423

MANITOWOC 040002384 FANGUARD

Save $0.31

MANITOWOC 040004016 WIRE HARNESS - AIR

Save $10.26

MANITOWOC 040003385 MYLAR SHIELD - WATER VALVE

Save $0.12

MANITOWOC 040002031 SHROUD, FAN

Save $2.84

MANITOWOC 040004329 KIT - TRACK DOOR ASSY

Save $8.97

About UY0140A Ice Machine Parts

We carry OEM parts for the UY0140A ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.

Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
