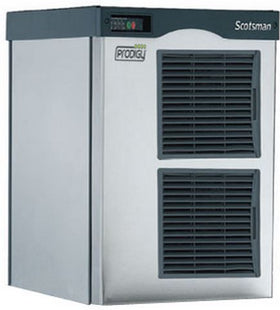

F1522

View Parts Breakdown

Looking to buy a new ice machine

to replace this model? Request a Quote →

Parts associated with F1522

02-0929-23 — Water seal
02-2217-02 — Float and arm only
02-2916-01 — Slotted collar
02-2929-03 — Ice chute lower*
02-2929-04 — Ice chute lower**
02-2930-04 — Chute cover
02-2977-01 — Lip seal
02-2978-01 — Lip seal
02-3001-01 — Ice sweep A39194-001 Back panel A-D series, WC, RC**
02-3128-20 — Cover, includes
02-3266-03 — Plunger/seat only
02-3319-01 — Filter dryer
02-3319-02 — Filter dryer
02-3371-01 — Water reservoir & valve
02-3371-02 — Float and arm only
02-3575-01 — Fan guard
02-3692-21 — Drain fitting
02-3837-01 — Drip pan
02-3841-01 — Ice chute 19a A40654-001 Back filler panel E series*
02-4076-01 — Control box door
02-4212-01 — Air filter
02-4212-03 — Air filter
02-4214-01 — Trim strip
02-4215-01 — Screw receptacle
02-4216-01 — Gusset***
02-4221-01 — Left trip strip*
02-4221-02 — Right trim strip*
02-4224-01 — Louver bracket
02-4224-03 — Louvers
02-4284-01 — Bezel
02-4284-02 — Bezel, partial window**
02-4338-01 — Evaporator inlet hose**
02-4339-01 — Drain hose** 02-4524-22 Base, fits Copeland CS
02-4350-21 — Evaporator, N0422, N0622
02-4352-21 — Evaporator, N0922, N1322
02-4358-01 — Collar
02-4406-01 — Insulation, TXV
02-4407-01 — Graphic overlay
02-4449-21 — Water sensor
02-4524-21 — Base, fits Tecumseh or
02-4524-22 — Base, fits Copeland CS
02-4663-01 — Water shed
02-4708-01 — Drain hose**
02-4752-01 — Evaporator inlet hose**
02-4819-02 — Trim strip A40310-023 Left side panel, AC E series
02-4820-02 — Tim strip
02-4821-02 — Bezel, includes standard door
02-4822-01 — Door, bezel with handle
02-4822-02 — Door, bezel secure
02-4823-21 — *Panel mount kit, left
02-4823-22 — *Panel mount kit, right
02-4824-01 — Spacer
03-1394-01 — Pal nut
03-1403-27 — Screw
03-1404-10 — Screw
03-1404-12 — Screw
03-1405-08 — Screw
03-1405-15 — Screw
03-1405-41 — Cap screw to gear box
03-1405-52 — Cap screw A40652-001 Back panel E series,WC,RC*
03-1531-01 — Screw
03-1544-08 — Screw, socket head
03-1645-01 — Screw for legs
03-1735-03 — Screw
03-3804-01 — Receptacle
03-3836-02 — Screw
08-0660-01 — Auger stud 16a 03-1405-41 Cap screw to gear box
11-0422-22 — Headmaster
11-0493-01 — Liquid line solenoid valve, 208
11-0493-02 — Liquid line solenoid valve
11-0501-22 — High pressure cut out sw
11-0502-21 — Low pressure cut out sw
11-0575-22 — Controller for A or B series.
11-0608-21 — Water regulating valve A-D Series
11-0608-24 — Water regulating valve E Series
11-0622-21 — Lower light & sw panel
11-0623-21 — Controller for Prodigy Plus D series and all prior
12-1681-04 — Fan motor, 208-230 volt/50 or
12-1681-23 — Fan motor
12-2430-21 — Drive motor
12-2430-22 — Drive Motor, 208-230 volt
12-2430-29 — Bearing
12-2430-44 — Start switch
12-2469-02 — Contactor, 208-230 volt
12-2469-03 — Contactor
12-2533-02 — Contactor
12-2639-01 — Transformer
12-2651-01 — Fan motor - ERC311 (208-230 volt)
12-2651-02 — Fan motor - ERC111 (115 volt)
12-2686-01 — Fuse
12-2687-01 — Fuse block
12-2733-30 — LLV/HGV rebuild kit
12-2924-01 — Transformer
12-2924-02 — Transformer, 208-230
12-2966-01 — High voltage harness, Rem
12-2976-01 — Low voltage harness
12-2994-01 — High voltage harness, AW
13-0617-45 — O-ring
13-0617-49 — O-ring, under slotted collar
13-0617-52 — O-ring - to chute
13-0617-54 — O-ring 02-4352-21 Evaporator, N0922, N1322
13-0704-00 — Gasket
13-0871-01 — Water shed A38071-022 Auger, N0922, N1322
13-0895-01 — Tubing, order
13-0929-01 — Insulation collar, flakers
13-0929-02 — Insulation collar, nuggets
16-0835-01 — Flare fitting, male ** for N0922, F1222, N1322, F1522
16-0850-01 — Discharge quick connect A-D Series
16-0850-03 — Liquid quick connect A-D Series
16-0871-01 — Brass insert, at float valve
16-0874-01 — Receiver, not shown, fits F1222W or N0922W
16-1030-01 — Receiver outlet valve
16-1039-01 — Connector, male * for N0422, F0522, N0622, F0822
16-1057-01 — Line set tube end, discharge A-D Series
16-1057-02 — Line set tube end, liquid A-D Series
16-1137-01 — Access valve seat
16-1139-01 — Access valve core
16-1140-01 — Access valve cap
16-1144-21 — TXV, N0422, F0522
16-1144-22 — TXV, N0622, F0822
16-1144-23 — TXV, N1322, F1522
16-1144-24 — TXV, N0922, F1222
16-1154-22 — Condenser drain fitting
16-1176-01 — Receiver
16-1198-01 — Fitting only
16-1208-01 — Isolation valve 3/8
16-1208-02 — Isolation valve 1/2
17-3207-01 — BU
18-1901-63 — not used
18-1903-64 — 18-1901-63 not used
18-8749-22 — Internal 18-1903-46 18-1901-48 18-1902-70
18-8749-27 — Internal 18-1903-33 18-1901-48 18-1902-70
18-8813-25 — Internal
18-8816-01 — Fan blade
18-8827-01 — Coil
18-8836-01 — Fan blade
18-8871-21 — Condenser, water cooled fits N0422, F0522, N0622, F0822, N0922, F1222
18-8882-01 — Fan blade
18-8890-01 — Air cooled condenser, fits N0422, F0522, N0622, F0822
18-8893-21 — Condenser, water cooled fits N1322 and F1522
18-8922-26 — Internal 18-1903-69 18-1901-66 18-1902-71
18-8927-01 — Fan motor
18-8929-21 — 18-8929-23 18-1903-64 18-1901-63 not used
18-8929-23 — 18-1903-64 18-1901-63 not used
18-8935-01 — Air cooled condenser, fits N0922, F1222
18-8936-01 — Air cooled condenser, fits N1322, F1522
18-8955-22 — Internal 18-1903-54 18-1901-20 18-1902-67
18-8955-26 — Internal 18-1903-71 18-1901-66 18-1902-63
