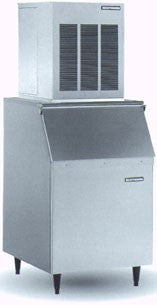

FME1204
Find Parts for FME1204
Browse OEM replacement parts for the FME1204 ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
FME1204
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with FME1204
- 02-0836-00 — Catch
- 02-0929-23 — Water Seal
- 02-1338-00 — Hose clamp
- 02-2378-01 — Fan Bracket
- 02-2916-01 — Slotted Collar
- 02-2929-04 — Ice Chute Lower
- 02-2930-04 — Ice Chute Cover
- 02-2976-01 — Filter Assembly for louvered
- 02-2977-01 — Lip Seal
- 02-2978-01 — Lip Seal
- 02-3001-01 — Ice Sweep
- 02-3128-20 — Breaker Cover
- 02-3266-01 — Reservoir & valve
- 02-3266-02 — Float valve
- 02-3266-03 — Plunger/seat
- 02-3268-01 — Drain tube holder
- 02-3319-02 — Dryer
- 02-3559-01 — is a needle that snaps onto a standard grease gun fitting. Use it to insert and deeply
- 02-3692-22 — Drain casting
- 02-3826-01 — Res. overflow hose
- 02-3837-01 — Drip Pan
- 02-3841-01 — Ice Chute Body, includes
- 02-4358-01 — Insulation wrap
- 02-4663-01 — Water Shed
- 03-0271-00 — Speed Clip
- 03-1394-01 — Pal nut
- 03-1403-14 — Screw
- 03-1403-27 — Screw longer used.
- 03-1404-12 — Screw 16. A35890-020 Base
- 03-1405-20 — Cap Screw
- 03-1405-41 — Cap Screw
- 03-1405-52 — Hex Cap Screw
- 03-1407-07 — Washer
- 03-1408-36 — Washer
- 03-1419-22 — Screw
- 03-1531-01 — Screw
- 03-1544-08 — Soc. Head Screw
- 03-1638-03 — Screw
- 03-1645-01 — Screw
- 03-1660-01 — Filter clip
- 08-0660-01 — Auger Stud & washer
- 11-0488-21 — Thermo Expansion Valve
- 11-0501-22 — Hi Pressure Cut Out
- 11-0502-21 — Low pressure cut out switch
- 11-0608-21 — Water Reg. Valve
- 12-1576-02 — Fan Motor
- 12-2350-01 — Standoff
- 12-2430-22 — Drive Motor
- 12-2430-24 — Start switch, Emerson
- 12-2430-29 — Rotor Bearing, Emerson
- 12-2430-44 — Start switch, GE split phase
- 12-2430-49 — Rotor bearing, GE split phase
- 12-2469-02 — Single Phase Contactor 12. 12-2745-01 Low voltage harness
- 12-2533-02 — Three phase contactor (9 pin)
- 12-2637-01 — Mode Switch
- 12-2745-01 — Low voltage harness
- 12-2747-01 — High voltage harness
- 12-2760-21 — Water Level Sensor
- 12-2835-22 — Circuit Board
- 13-0617-45 — O-Ring
- 13-0617-49 — O-Ring
- 13-0617-52 — O-Ring
- 13-0617-54 — O-Ring
- 13-0704-00 — Gasket
- 13-0840-01 — Rubber cap
- 13-0871-01 — Water Shed
- 13-0895-01 — Inlet tubing
- 13-0929-01 — Insulation donut*
- 13-0929-02 — Insulation donut*
- 15-0411-00 — Strike (on front panel)
- 15-0808-01 — Emblem, grey A35924-002 Rear panel, stainless
- 16-0401-02 — Elbow (not shown)
- 16-0832-02 — Stem cap
- 16-0832-03 — Core cap
- 16-0832-20 — Access valve
- 16-0835-01 — Water fitting
- 16-1039-01 — Male connector
- 16-1137-01 — Access valve body
- 16-1139-01 — Core
- 16-1140-01 — Cap
- 17-2702-01 — SWITCH
- 18-1901-20 — Start capacitor, RST70 9. 12-2350-01 Standoff
- 18-1901-53 — Start Capacitor
- 18-1901-54 — Start Capacitor
- 18-1902-45 — Run capacitor
- 18-1902-53 — Run capacitor
- 18-1902-67 — Run capacitor, RST70 11. A37861-001 Control Box Cover
- 18-1903-33 — Potential Relay
- 18-1903-54 — Potential relay
- 18-2200-27 — Sleeve
- 18-2200-28 — Grommet
- 18-2300-27 — Sleeve
- 18-3815-01 — Fan Blade
- 18-8717-01 — Condenser
- 18-8718-25 — Condenser for A series
- 18-8772-21 — Overload for above
- 18-8772-26 — Compressor 220-240/50/1
- 18-8873-21 — Condenser for B series
- 18-8955-22 — Compressor 208-230/60/1
- 18-8955-23 — Compressor 200-230/60/3
- 18-8955-53 — Overload for above
- 19-0599-06 — Insulation
Shop FME1204 Parts
About FME1204 Ice Machine Parts
We carry OEM parts for the FME1204 ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
