UF424
Find Parts for UF424
Browse OEM replacement parts for the UF424 ice machine and use the parts diagram below to identify the correct component before ordering.
View Parts Diagram for
UF424
Buy Filters for this Model
Looking to buy a new ice machine
to replace this model?
Request a Quote →
Parts associated with UF424
- 02-0929-23 — Water seal
- 02-1875-25 — Hole plug
- 02-2217-02 — Float valve only, of
- 02-2814-09 — Hose clamp
- 02-2814-13 — Hose clamp
- 02-3112-01 — Wire mount
- 02-3319-01 — Dryer
- 02-3692-01 — Drain adapter
- 02-4381-03 — Retaining clip
- 02-4745-01 — Ice sweep, nugget (UN) wrench to hold motor shaft.
- 02-4758-21 — Evaporator
- 02-4760-01 — Chute
- 02-4761-01 — Chute insulation
- 02-4786-01 — Water shed
- 02-4791-01 — Sensor holder
- 02-4791-02 — Magnet holder
- 02-4797-01 — Motor cover
- 02-4802-01 — Ice chute cover
- 02-4804-01 — Drain pan when removing
- 02-4830-02 — Cover
- 02-4838-01 — Coupling
- 02-4840-21 — Auger
- 02-4843-23 — Bearing
- 02-4873-01 — Wrench to hold motor shaft
- 02-4948-01 — Top frame
- 02-4949-01 — Compartment cover
- 02-4951-01 — Louvered grill
- 02-4952-01 — Air filter
- 02-4953-01 — Reservoir bracket
- 02-4954-01 — Drain tube
- 02-4955-01 — Knob
- 02-4961-01 — Evap water inlet tubing
- 02-4962-01 — Inner top panel
- 02-4963-01 — Insulation
- 02-4985-01 — Ice sweep, flaker (UF) tighten the #4 retaining screw. #28 is an optional thin
- 02-4997-01 — Overflow tube
- 03-0571-00 — Screw
- 03-0727-05 — Thumbscrew
- 03-1394-01 — Pal nut
- 03-1403-16 — Screw
- 03-1403-29 — Screw
- 03-1403-70 — Bolt*
- 03-1404-12 — Screw
- 03-1405-38 — Cap screw
- 03-1405-40 — Mounting bolt
- 03-1405-52 — Bolt *A cordless impact driver can be used to remove or
- 03-1407-08 — Washer
- 03-1410-01 — Lockwasher
- 03-1417-13 — Lockwasher
- 03-1531-08 — Screw
- 03-1544-08 — Socket hd cap screw, 3/4 inch long
- 03-1544-09 — Screw, socket head
- 03-1642-08 — Hex insert
- 03-1645-01 — Cap screw
- 03-1727-02 — Stand off
- 03-1875-21 — Hole plug 12-2989-02 Fan motor
- 03-3821-01 — Clip
- 03-3836-03 — Screw
- 03-3836-04 — Screw
- 03-3870-01 — Screw 18a 02-4955-01 Knob
- 03-3889-02 — Screw
- 03-3892-01 — Thumb screw
- 03-3905-01 — Jam nut
- 03-3940-01 — Plastic glide
- 03-3941-01 — Bushing
- 03-3943-01 — Screw, #8
- 03-3943-02 — Screw
- 03-3953-01 — Retaining ring
- 03-3963-02 — Screw
- 11-0501-24 — Hi pressure cut out (260 PSIG)
- 11-0608-02 — Water regulating valve
- 11-0612-52 — Controller
- 12-0350-00 — Strain relief
- 12-1213-04 — Snap bushing
- 12-1213-10 — Snap bushing
- 12-1213-15 — Snap bushing
- 12-1213-20 — Snap bushing
- 12-1638-30 — Power cord
- 12-1638-31 — Power cord
- 12-2469-02 — Contactor for 230/50
- 12-2469-03 — Contactor for 115/60
- 12-2989-01 — Fan motor
- 12-2989-02 — Fan motor
- 12-3083-21 — Gear reducer complete, for
- 12-3083-22 — Gear reducer complete, for
- 12-3083-23 — Gear reducer, motor
- 12-3083-24 — Capacitor
- 12-3083-25 — Capacitor

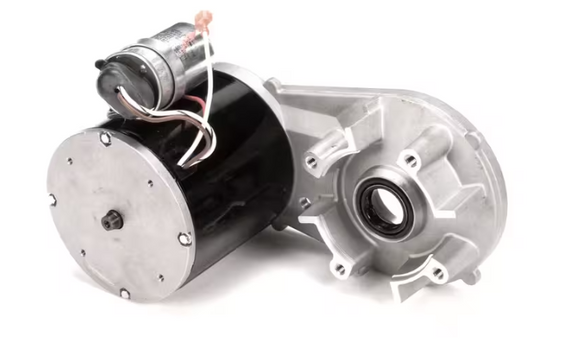

- 12-3083-31 — Auger drive motor, for

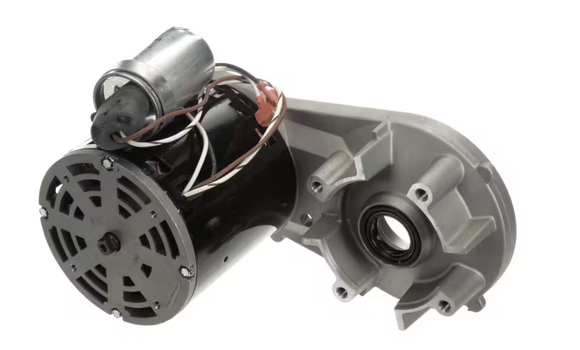

- 12-3083-32 — Auger drive motor, for
- 12-3089-02 — Rotation sensor with harness
- 12-3127-01 — Fan harness
- 12-3128-01 — Bin sensors with wire harness
- 12-3128-02 — Bin and water sensor harness
- 12-3129-01 — Hi voltage harness
- 13-0609-00 — Shroud tape, 15” req.
- 13-0617-52 — O-ring
- 13-0840-01 — Drain plug
- 13-0964-01 — Bin sensor grommet
- 16-0655-03 — Gasket tape, each per foot
- 16-1138-01 — Valve body
- 16-1139-01 — Valve core
- 16-1140-01 — Valve cap
- 16-1150-01 — Water inlet
- 16-1154-02 — Condenser drain fitting
- 16-1213-02 — Barbed adapter
- 16-1214-02 — Thermostatic expansion valve
- 16-1215-01 — Fitting
- 16-1217-01 — Nut
- 18-1901-42 — Start capacitor, for 115/60 12-3127-01 Fan harness
- 18-1901-56 — Start capacitor for 230/50 12-3089-02 Rotation sensor with harness
- 18-1902-69 — Run capacitor for 115/60 12-3129-01 Hi voltage harness
- 18-1902-72 — Run capacitor for 230/50 12-3128-02 Bin and water sensor harness
- 18-1903-73 — Potential relay, for 115/60
- 18-1903-74 — Potential relay, for 230/50
- 18-4700-28 — Grommet
- 18-8708-01 — Fan blade
- 18-8869-01 — Water cooled condenser
- 18-8942-01 — Air cooled condenser
- 18-8979-21 — Compressor
- 18-8979-26 — Compressor
- 18-8979-41 — Overload for
- 18-8979-51 — Overload for
- 19-0599-06 — Insulation for TXV
- 19-0655-03 — Shroud tape
Shop UF424 Parts
About UF424 Ice Machine Parts
We carry OEM parts for the UF424 ice machine to help you repair, maintain, and extend the life of your equipment. Use the parts breakdown PDF above to identify the correct component and match it to the products listed on this page.
Popular replacement items may include pumps, valves, sensors, motors, and control components, depending on the machine configuration. Ordering the correct OEM part helps reduce downtime and improves long-term reliability.
